Single parts, xenon headlight for BMW 7 Series E38 735iL (2001)

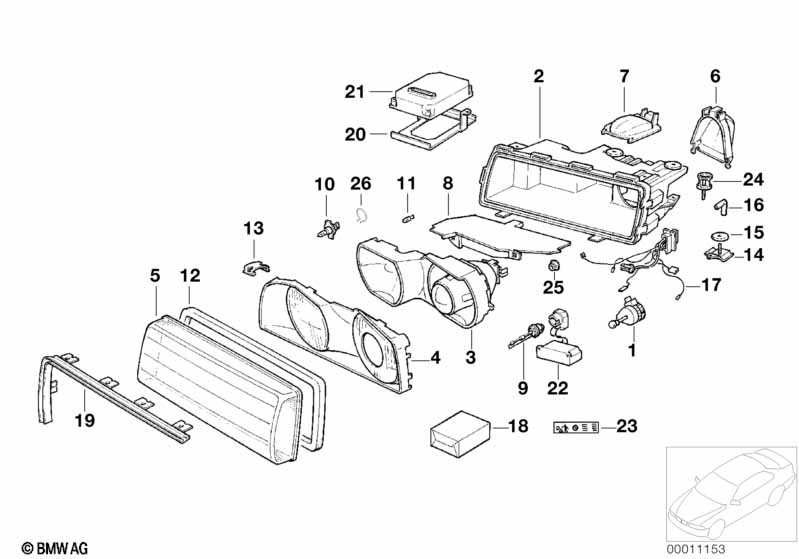

This Single parts, xenon headlight technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 735iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 10 | Bulb | H7/55W | 2 | 63217160780 | $18.86 | Shop at ECS Tuning | ||||
| 10 | Longlife bulb | 12V 55W H7 | 2 | 63217160781 | $20.90 | Shop at ECS Tuning | ||||
| 11 | Longlife bulb | 5W | 2 | 63217160797 | $1.96 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E38 735iL Single parts, xenon headlight?
- This technical diagram illustrates the Single parts, xenon headlight within the Lighting group for the 7 Series E38 735iL produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Bulb (Part #63217160780).
- Which models use the hardware listed in this Single parts, xenon headlight?
- The hardware and components featured in the Single parts, xenon headlight are specific to the 7 Series E38 735iL produced during 2001. These technical specifications ensure that parts like the Bulb (63217160780) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Single parts, xenon headlight assembly?
- Each item in the Single parts, xenon headlight corresponds to the numbered list below the illustration. For the 7 Series E38 735iL, you can identify the Bulb by locating its position on the schematic, which then links to the official BMW part number 63217160780 for the Lighting section.
