Rear light for BMW 7 Series E38 728i (2001)

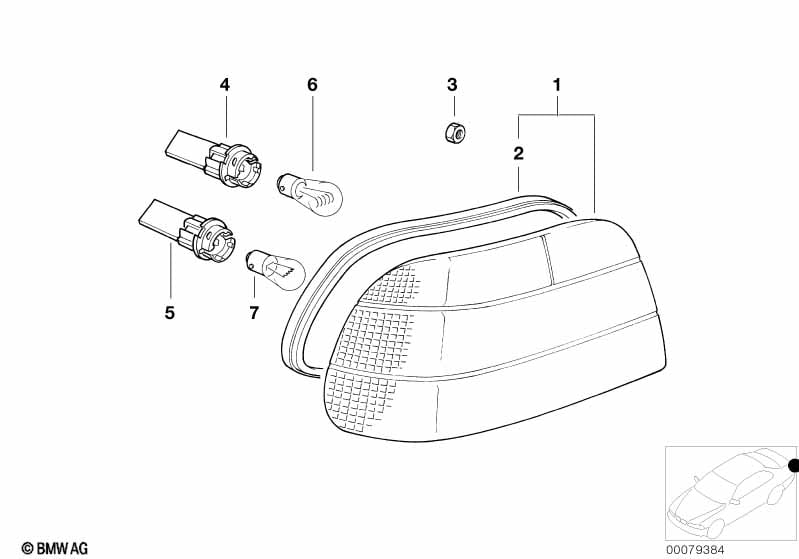

This Rear light technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 728i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tail light left | 1 | 09/1998 | 63218381245 | $259.02 | +core | Shop at ECS Tuning | |||
| 01 | Tail light right | 1 | 09/1998 | 63218381246 | $259.02 | +core | Shop at ECS Tuning | |||
| 01 | Left rear light, white turn indicator | 1 | 09/1998 | 63218387637 | +core | Shop at ECS Tuning | ||||
| 01 | Right rear light, white turn indicator | 1 | 09/1998 | 63218387638 | Shop at ECS Tuning | |||||
| 02 | Tail light gasket | 2 | 63218360083 | $8.95 | ENDED | Shop at ECS Tuning | ||||
| 03 | Hex nut with plate | M5 | X | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 04 | Bulb socket | 4 | 09/1998 | 63218381243 | $6.48 | Shop at ECS Tuning | ||||
| 05 | Bulb socket | 8 | 09/1998 | 63218381244 | $6.48 | Shop at ECS Tuning | ||||
| 05 | Bulb socket, yellow bulb | 2 | 09/1998 | 63218387639 | $9.05 | Shop at ECS Tuning | ||||
| 06 | Longlife bulb | 12V 21/5W | 4 | 07119905511 | $4.88 | Shop at ECS Tuning | ||||
| 06 | Bulb | 12V 21/5W | 4 | 09/1998 | 63217160793 | $3.92 | Shop at ECS Tuning | |||
| 07 | Bulb | P21W/12V/21W | 8 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 07 | Longlife bulb | P21W/12V/21W | 8 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 07 | Bulb yellow | PY21W/12V/21W | 2 | 63217160791 | $5.58 | Shop at ECS Tuning | ||||
| 07 | Bulb silver | 12V 21W | 2 | 63217160897 | $19.40 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
