Front/front lateral turn indicator for BMW 7 Series E38 725tds (2000)

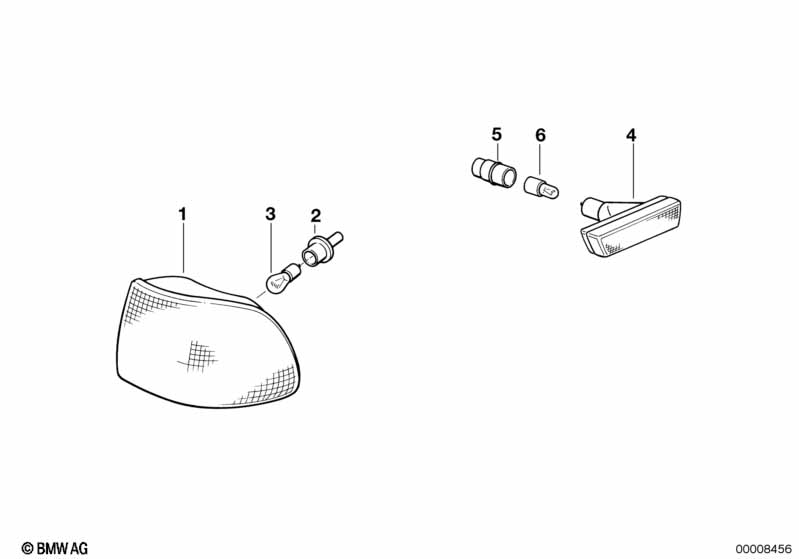

This Front/front lateral turn indicator technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 725tds. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left turn indicator | 1 | 09/1998 | 63138379107 | $53.18 | Shop at ECS Tuning | ||||
| 01 | Right turn indicator | 1 | 09/1998 | 63138379108 | $53.18 | Shop at ECS Tuning | ||||
| 01 | Front left white turn indicator | 1 | 09/1998 | 63138387633 | $86.97 | Shop at ECS Tuning | ||||
| 01 | Front right white turn indicator | 1 | 09/1998 | 63138387634 | $86.97 | Shop at ECS Tuning | ||||
| 02 | Bulb socket | 2 | 63138361002 | $7.32 | Shop at ECS Tuning | |||||
| The bulb socket PN 8375303 is identical to the bulb socket PN 8361002 except for the encoded inner ring. This can be replaced with workshop tools. If the encoded ring is removed from PN 8375303 and installed in PN 8361002, then PN 8375303 is removed from PN 8361002. As a result, PN 8375303 can be omitted. |
||||||||||
| 02 | Bulb socket, yellow bulb | 2 | 63128375303 | $18.23 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bulb | P21W/12V/21W | 2 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 03 | Longlife bulb | P21W/12V/21W | 2 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 03 | Bulb yellow | PY21W/12V/21W | 2 | 63217160791 | $5.58 | Shop at ECS Tuning | ||||
| 03 | Bulb silver | 12V 21W | 2 | 63217160897 | $19.40 | Shop at ECS Tuning | ||||
| 04 | Addit. turn indicator lamp, left white | 1 | 63137165845 | $25.83 | Shop at ECS Tuning | |||||
| 04 | Addit. turn indicator lamp, right white | 1 | 63137165846 | $25.83 | Shop at ECS Tuning | |||||
| 04 | Additional turn indicator lamp, left | 1 | 63138360215 | $25.30 | Shop at ECS Tuning | |||||
| 04 | Additional turn indicator lamp, right | 1 | 63138360216 | $25.30 | Shop at ECS Tuning | |||||
| 05 | Bulb socket | 2 | 63138360205 | $7.32 | Shop at ECS Tuning | |||||
| 06 | Longlife bulb | 5W | 2 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| 06 | Bulb yellow | 12V 5W | 2 | 63217160798 | $2.96 | Shop at ECS Tuning | ||||
| 06 | Bulb silver | 12V 5W | 2 | 63217165496 | $7.50 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
