Various lamps for BMW 7 Series E38 740iL (2001)

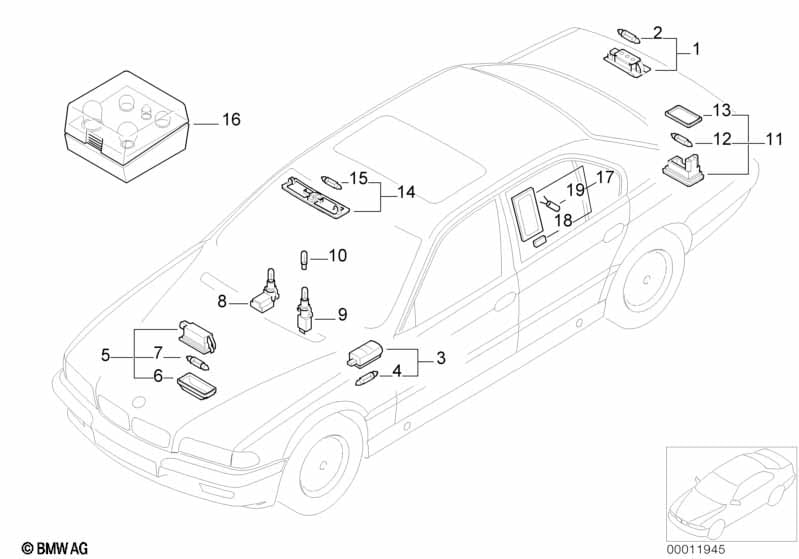

This Various lamps technical drawing provides a detailed breakdown of the assembly for the 7 Series E38 740iL. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO TRUNK LAMP | ||||||||||
| 01 | Interior light | 10W | 2 | 63316962039 | $11.92 | Shop at ECS Tuning | ||||
| 02 | Bulb | 12V 10W | 2 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO GLOVE BOX LIGHT ONLY APPLIES TO FRONT DOOR ENTRANCE LAMP |
||||||||||
| 03 | Interior light | 1 | 63316962040 | $10.07 | Shop at ECS Tuning | |||||
| 04 | Bulb | 12V 5W | 1 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO REAR DOOR ASHTRAY | ||||||||||
| 08 | Bent bulb socket with bulb | GLASKLAR | 2 | 61138352933 | $7.12 | Shop at ECS Tuning | ||||
| For vehicles with Cassette box |
=Yes |
|||||||||
| 08 | Bent bulb socket with bulb | ORANGE | 1 | 61138366593 | $7.12 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO LIGHTER REAR ONLY APPLIES TO CIGARETTE LIGHTER SOCKET |
||||||||||
| 09 | Straight bulb socket with bulb | ORANGE | 1 | 61138366595 | $7.12 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO ASHTRAY |
||||||||||
| 09 | Straight bulb socket with bulb | ORANGE | 1 | 61138366595 | $7.12 | Shop at ECS Tuning | ||||
| 11 | Registration plate light | 2 | 63268352424 | $20.42 | Shop at ECS Tuning | |||||
| 12 | Bulb | 12V 5W | 2 | 12/2004 | 63217160805 | $1.58 | Shop at ECS Tuning | |||
| 13 | Registration plate light | 2 | 63268352424 | $20.42 | Shop at ECS Tuning | |||||
| 14 | Mirror lamp | GRAU | 2 | 63318360010 | $32.68 | Shop at ECS Tuning | ||||
| 14 | Mirror lamp | BEIGE | 2 | 63318360011 | $32.68 | Shop at ECS Tuning | ||||
| 14 | Mirror lamp | PEARLBEIGE | 2 | 09/1998 | 63318385358 | $42.23 | ENDED, +core | Shop at ECS Tuning | ||
| 15 | Bulb | 12V 10W | 2 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 16 | Spare bulbs box | 1 | 63212318127 | Shop at ECS Tuning | ||||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
