Single components for headlight for BMW 5 Series E39 528i (2000)

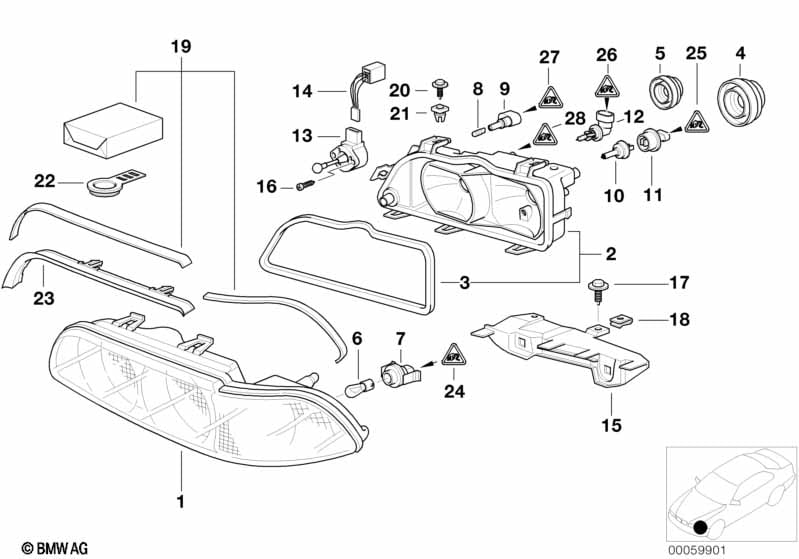

This Single components for headlight technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.

Single components for headlight
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Left cover glass 1 09/2000 63128361555 +core Shop at ECS Tuning
only in conjunction with
01 Right cover glass 1 09/2000 63128361556 +core Shop at ECS Tuning
only in conjunction with
01 Left cover glass with white turn indicat 1 09/2000 63128375307 Shop at ECS Tuning
only in conjunction with
01 Rght cover glass with white turn indicat 1 09/2000 63128375308 Shop at ECS Tuning
only in conjunction with
-- Headlight gasket 1 09/2000 63128362446 $23.55 Shop at ECS Tuning
02 Right headlamp housing with insert 1 09/2000 63128378004 Shop at ECS Tuning
02 Left headlamp housing with insert 1 09/2000 63128378003 Shop at ECS Tuning
only in conjunction with
-- Headlight gasket 1 09/2000 63128362446 $23.55 Shop at ECS Tuning
03 Headlight gasket 2 09/2000 63128362446 $23.55 Shop at ECS Tuning
04 Low beam cover 2 09/2000 63128362835 $24.40 Shop at ECS Tuning
05 Covering cap high beam 2 09/2000 63128361961 $23.40 Shop at ECS Tuning
06 Bulb P21W/12V/21W 2 09/2000 63217160789 $1.96 Shop at ECS Tuning
06 Longlife bulb P21W/12V/21W 2 09/2000 63217160790 $2.38 Shop at ECS Tuning
06 Bulb yellow PY21W/12V/21W 2 09/2000 63217160791 $5.58 Shop at ECS Tuning
07 Bulb socket 2 09/2000 63138361002 $7.32 Shop at ECS Tuning
The bulb socket PN 8375303 is identical
to the bulb socket PN 8361002 except
for the encoded inner ring.
This can be replaced with workshop
tools.
If the encoded ring is removed from PN
8375303 and installed in PN 8361002,
then PN 8375303 is removed from PN
8361002.
As a result, PN 8375303 can be omitted.
07 Bulb socket, yellow bulb 2 09/2000 63128375303 $18.23 ENDED Shop at ECS Tuning
08 Longlife bulb 5W 2 09/2000 63217160797 $1.96 Shop at ECS Tuning
09 Bulb socket 2 09/2000 63128389744 $9.05 Shop at ECS Tuning
10 Low beam and/or fog lightbulb HB4 12V 55W 2 09/2000 63217160786 $18.86 Shop at ECS Tuning
12 Bulb HB3 12V 60W 2 09/2000 63217160785 $18.86 Shop at ECS Tuning
13 Head light vertical aim control 2 09/2000 67168352206 $76.77 Shop at ECS Tuning
14 Wiring light regulator 2 09/2000 61138373573 $6.40 Shop at ECS Tuning
15 Bracket headlight left 1 09/2000 63128362441 $30.62 Shop at ECS Tuning
15 Bracket headlight right 1 09/2000 63128362442 $30.62 Shop at ECS Tuning
16 Fillister head screw 4X10 4 09/2000 51161954785 $0.22 Shop at ECS Tuning
17 Hex head screw ST6,3X13-F-Z1 4 09/2000 07119905807 $0.56 Shop at ECS Tuning
18 Body nut ST6,3-2-ZNS3 4 09/2000 07129904232 $0.16 Shop at ECS Tuning
19 Repair kit headlight 2 09/2000 63128362435 $37.87 Shop at ECS Tuning
20 Screw 8 09/2000 63126975083 $0.43 Shop at ECS Tuning
21 Expanding nut BLACK 4 09/2000 63128374670 $0.30 Shop at ECS Tuning
21 Expanding nut GRAU 4 09/2000 63128374671 $0.23 Shop at ECS Tuning
22 Headlight cover 2 09/2000 63128375448 $14.47 Shop at ECS Tuning
23 Gasket plugged-in, headlight left 1 09/2000 63128387513 $11.93 Shop at ECS Tuning
23 Gasket plugged-in, headlight right 1 09/2000 63128387514 $11.93 Shop at ECS Tuning
24 Universal socket housing uncoded 4 POL. 2 09/2000 61138365356 $3.10 Shop at ECS Tuning
only in conjunction with
-- Contact bushing MQS ELA with cable 0,5-0,75 MM² AG X 09/2000 61130056384 Shop at ECS Tuning
-- Dummy grommet MQS Ø=3,6 X 09/2000 61138366249 $0.20 Shop at ECS Tuning
25 Socket housing, grey 2 POL. 2 09/2000 61138364498 $2.33 Shop at ECS Tuning
only in conjunction with
-- Flat spring contact JPT ELA with cable 0,5-1,0 MM² AG 4 09/2000 61130070584 Shop at ECS Tuning
26 Plug terminal black 2 POL. 2 09/2000 61138364494 $1.82 Shop at ECS Tuning
only in conjunction with
-- Flat spring contact JPT ELA with cable 0,5-1,0 MM² AG 2 09/2000 61130070584 Shop at ECS Tuning
27 Universal socket housing uncoded 2 POL. 2 09/2000 61138352390 $19.65 Shop at ECS Tuning
only in conjunction with
-- Snap-in receptacle 2.5 ELA with cable 0,75-1,0 MM² 4 09/2000 61130007569 $2.27 Shop at ECS Tuning
For vehicles with
Headlight aim control
=Yes
28 Universal socket housing uncoded 4 POL. 2 09/2000 61138365356 $3.10 Shop at ECS Tuning
only in conjunction with
-- Contact bushing MQS ELA with cable 0,5-0,75 MM² AG 2 09/2000 61130056384 Shop at ECS Tuning
-- Dummy grommet MQS Ø=3,6 2 09/2000 61138366249 $0.20 Shop at ECS Tuning
