Fog lights for BMW 5 Series E39 523i (2000)

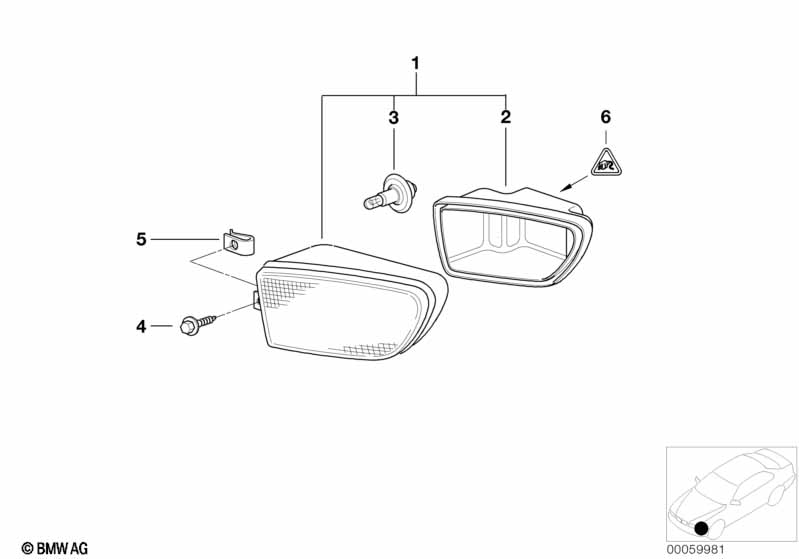

This Fog lights technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fog lights, left | ZKW | 1 | 09/1997 | 09/2000 | 63178377941 | +core | Shop at ECS Tuning | ||
| 01 | Fog lights, right | ZKW | 1 | 09/1997 | 09/2000 | 63178377942 | +core | Shop at ECS Tuning | ||
| 02 | Left fog lamp cap | MAGNETI MARELLI | 1 | 09/2000 | 63178362419 | $28.62 | ENDED | Shop at ECS Tuning | ||
| 02 | Right fog lamp cap | MAGNETI MARELLI | 1 | 09/2000 | 63178362420 | $28.62 | Shop at ECS Tuning | |||
| 02 | Left fog lamp cap | ZKW | 1 | 09/1997 | 09/2000 | 63178381975 | $37.30 | Shop at ECS Tuning | ||
| 02 | Right fog lamp cap | ZKW | 1 | 09/1997 | 09/2000 | 63178381976 | $37.30 | Shop at ECS Tuning | ||
| 03 | Bulb | H7/55W | 2 | 63217160780 | $18.86 | Shop at ECS Tuning | ||||
| 03 | Longlife bulb | 12V 55W H7 | 2 | 63217160781 | $20.90 | Shop at ECS Tuning | ||||
| 04 | Sheet metal screw | 4,2X16 | 4 | 09/2000 | 07119904265 | Shop at ECS Tuning | ||||
| 05 | Body nut | ST4,2-3-ZNS3 | 4 | 09/2000 | 07129904221 | $0.25 | Shop at ECS Tuning | |||
| 06 | Universal socket housing uncoded | 2 POL. | 2 | 09/2000 | 61138352390 | $19.65 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 ELA with cable | 0,75-1,0 MM² | 4 | 09/2000 | 61130007569 | $2.27 | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
