Third stoplamp for BMW 5 Series E39 520i (2000)

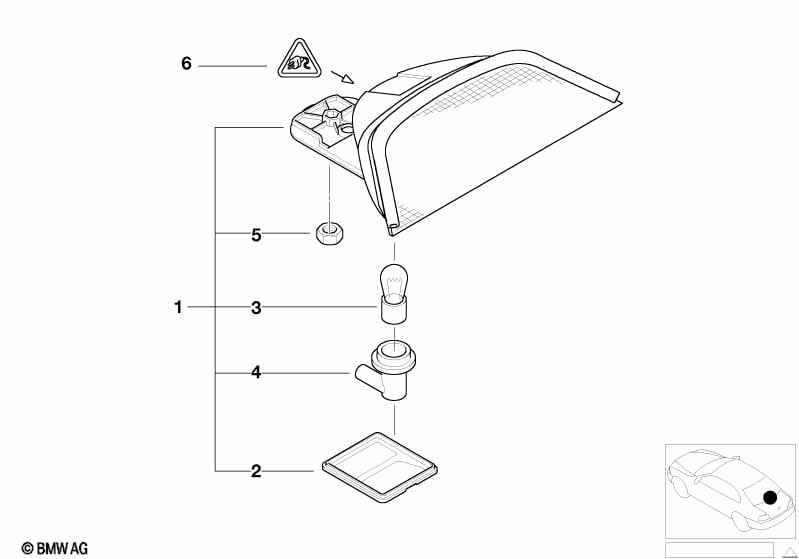

This Third stoplamp technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Third stoplamp | 1 | 63258385659 | $142.78 | +core | Shop at ECS Tuning | ||||
| For vehicles with Tinted glass SA761 |
=Yes |
|||||||||
| 01 | Third stoplamp | 1 | 63258386567 | Shop at ECS Tuning | ||||||
| 02 | Cover | 1 | 63258364430 | $5.18 | ENDED | Shop at ECS Tuning | ||||
| 03 | Bulb | P21W/12V/21W | 1 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 03 | Longlife bulb | P21W/12V/21W | 1 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 04 | Bulb socket | 1 | 63258375599 | $5.40 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M5-10-ZNNIV SI | 1 | 07119906520 | Shop at ECS Tuning | |||||
| 06 | Plug terminal black | 2 POL. | 1 | 61131378149 | $1.62 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 ELA with cable | 1,0-2,5 MM² | X | 61130007571 | $2.65 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
