Rear light for BMW 5 Series E39 528i (2000)

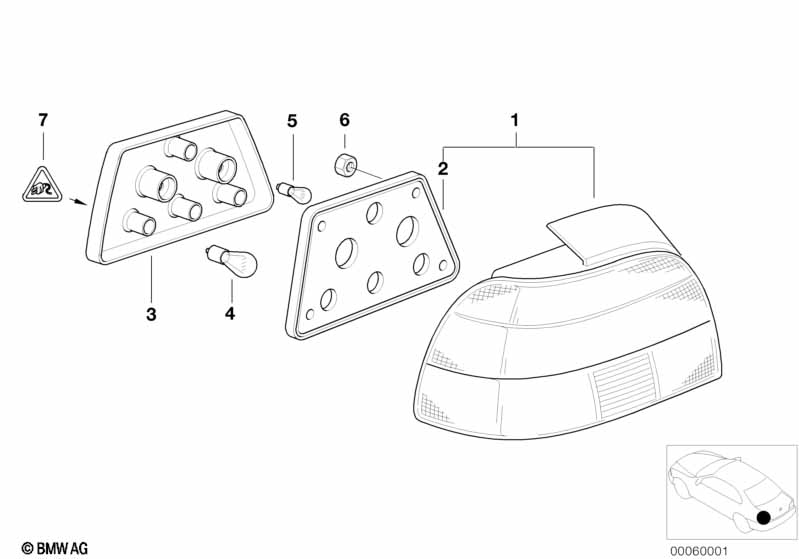

This Rear light technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tail light left | 1 | 09/2000 | 63218363557 | $215.57 | Shop at ECS Tuning | ||||
| 01 | Tail light right | 1 | 09/2000 | 63218363558 | $215.57 | Shop at ECS Tuning | ||||
| 01 | Left rear light, white turn indicator | 1 | 09/2000 | 63212496297 | $232.60 | Shop at ECS Tuning | ||||
| COMPRISES AMONG OTHERS BULB CARRIER |
||||||||||
| 01 | Right rear light, white turn indicator | 1 | 09/2000 | 63212496298 | $200.88 | Shop at ECS Tuning | ||||
| COMPRISES AMONG OTHERS BULB CARRIER |
||||||||||
| 02 | Set of rear light gaskets | 1 | 09/2000 | 63212161597 | $20.04 | Shop at ECS Tuning | ||||
| 03 | Left bulb carrier f white turn indicator | 1 | 09/2000 | 63212496337 | $94.55 | Shop at ECS Tuning | ||||
| 03 | Rght bulb carrier f white turn indicator | 1 | 09/2000 | 63212496338 | $94.55 | Shop at ECS Tuning | ||||
| 03 | Bulb socket, left | 1 | 09/2000 | 63218363565 | $80.57 | Shop at ECS Tuning | ||||
| 03 | bulb socket, right | 1 | 09/2000 | 63218363566 | $80.57 | Shop at ECS Tuning | ||||
| 04 | Bulb yellow | PY21W/12V/21W | 2 | 09/2000 | 63217160791 | $5.58 | Shop at ECS Tuning | |||
| ONLY APPLIES TO STOP AND REAR FOG LIGHT REVERSE AND TURN INDICATOR LIGHT |
||||||||||
| 04 | Bulb | P21W/12V/21W | 8 | 09/2000 | 63217160789 | $1.96 | Shop at ECS Tuning | |||
| 04 | Longlife bulb | P21W/12V/21W | 8 | 09/2000 | 63217160790 | $2.38 | Shop at ECS Tuning | |||
| ONLY APPLIES TO TAIL LIGHT | ||||||||||
| 05 | Bulb | 12V 5W | 4 | 09/2000 | 07119905336 | $1.58 | Shop at ECS Tuning | |||
| 06 | Hex nut with plate | M5 | 8 | 09/2000 | 63259128043 | $0.72 | Shop at ECS Tuning | |||
| 07 | Universal socket housing uncoded | 8 POL. | 2 | 09/2000 | 61138352322 | $19.85 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 with cable | 0,5-1,0 MM² SN | X | 09/2000 | 61135A07B73 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Rear light?
- This technical diagram illustrates the Rear light within the Lighting group for the 5 Series E39 528i produced during 2000. It provides a detailed exploded view of the components, identifying key parts such as the Tail light left (Part #63218363557).
- Which models use the hardware listed in this Rear light?
- The hardware and components featured in the Rear light are specific to the 5 Series E39 528i produced during 2000. These technical specifications ensure that parts like the Tail light left (63218363557) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear light assembly?
- Each item in the Rear light corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Tail light left by locating its position on the schematic, which then links to the official BMW part number 63218363557 for the Lighting section.
