Various lamps/spare bulbs box for BMW 5 Series E39 523i (2000)

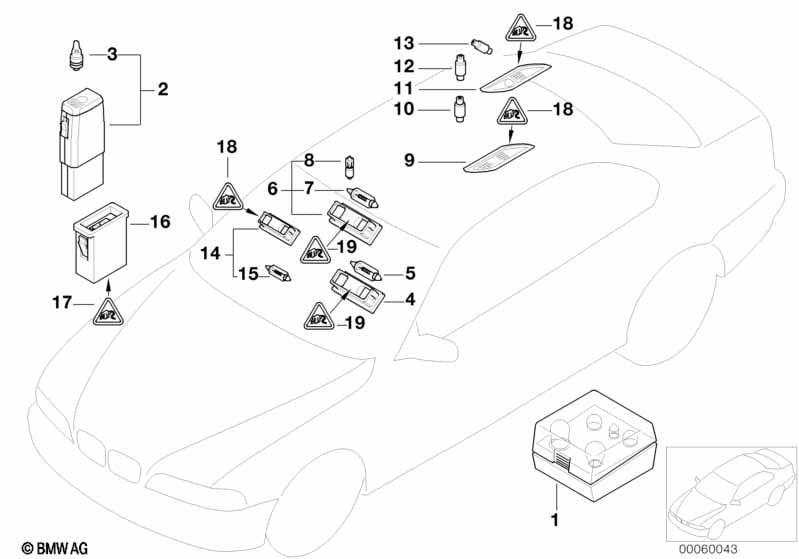

This Various lamps/spare bulbs box technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 03 | Bulb | 0,25 A | 1 | 63217167019 | $1.50 | ENDED | Shop at ECS Tuning | |||
| 04 | Interior light | BEIGE | 1 | 63318363264 | $53.12 | +core | Shop at ECS Tuning | |||
| 04 | Interior light | GRAU | 1 | 63318363265 | $53.12 | Shop at ECS Tuning | ||||
| 05 | Bulb | 12V 10W | 1 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 06 | Interior light and reading light w/light | GRAU | 1 | 63318369511 | $104.68 | ENDED | Shop at ECS Tuning | |||
| 06 | Interior light and reading light w/light | BEIGE | 1 | 63318369512 | $101.84 | ENDED | Shop at ECS Tuning | |||
| 06 | Interior light and reading light w/light | SCHWARZ | 1 | 63312269513 | $220.82 | ENDED | Shop at ECS Tuning | |||
| 07 | Bulb | 12V 10W | 1 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 08 | Bulb | 12V 10W | 1 | 63311375003 | $16.90 | Shop at ECS Tuning | ||||
| 09 | Interior light rear left | BEIGE | 1 | 63318363605 | $35.20 | Shop at ECS Tuning | ||||
| 09 | Interior light rear right | BEIGE | 1 | 63318363606 | $35.20 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Interior light rear left | GRAU | 1 | 63318363607 | $35.20 | Shop at ECS Tuning | ||||
| 09 | Interior light rear right | GRAU | 1 | 63318363608 | $35.20 | ENDED | Shop at ECS Tuning | |||
| 10 | Bulb | 12V 10W | 2 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 11 | Left rear inter.light and reading light | SCHWARZ | 1 | 63312491509 | $59.55 | ENDED | Shop at ECS Tuning | |||
| 11 | Right rear inter.light and reading light | SCHWARZ | 1 | 63312491510 | $59.55 | ENDED | Shop at ECS Tuning | |||
| 11 | Left rear inter.light and reading light | BEIGE | 1 | 63318363609 | $59.55 | ENDED | Shop at ECS Tuning | |||
| 11 | Right rear inter.light and reading light | BEIGE | 1 | 63318363610 | $59.55 | ENDED | Shop at ECS Tuning | |||
| 11 | Left rear inter.light and reading light | GRAU | 1 | 63318363611 | $59.55 | ENDED | Shop at ECS Tuning | |||
| 11 | Right rear inter.light and reading light | GRAU | 1 | 63318363612 | $59.55 | ENDED | Shop at ECS Tuning | |||
| 12 | Bulb | 12V 10W | 2 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 13 | Bulb | 5W | 2 | 63311374798 | $16.90 | +core | Shop at ECS Tuning | |||
| 14 | Interior light | 1 | 63316962040 | $10.07 | Shop at ECS Tuning | |||||
| 15 | Bulb | 12V 5W | 1 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 16 | Support f chargeable handlamp | 1 | 61138352336 | $17.23 | Shop at ECS Tuning | |||||
| 17 | Universal socket housing, uncoded | 3 POL. | 1 | 61138352304 | $16.65 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 with cable | 0,5-1,0 MM² SN | 2 | 61135A07B73 | Shop at ECS Tuning | |||||
| 18 | Universal socket housing uncoded | 3 POL. | 1 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 1 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 1 | 61130056960 | Shop at ECS Tuning | |||||
| 19 | Universal socket housing uncoded | 6 POL. MQS | 1 | 61136954554 | $4.23 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| -- | Universal socket housing uncoded | 6 POL. MQS | 1 | 61136954554 | $4.23 | Shop at ECS Tuning | ||||
