Various lamps for BMW 5 Series E39 528i (2000)

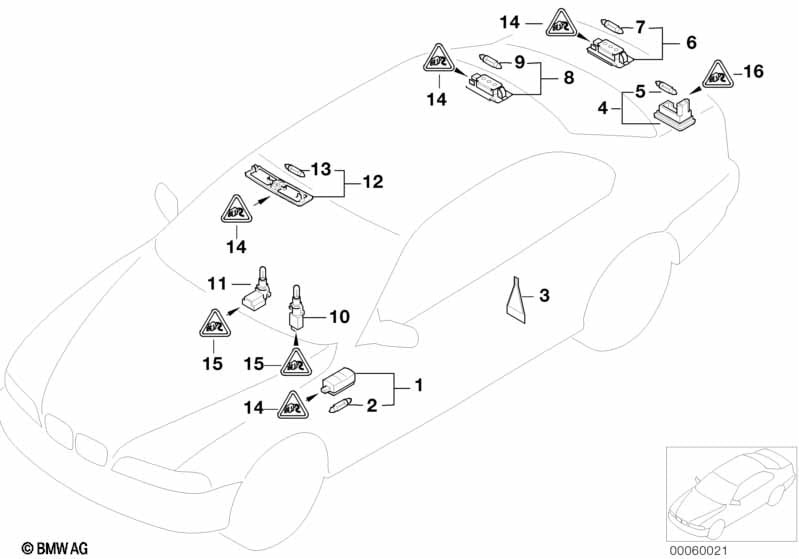

This Various lamps technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor lamp | 4 | 63316963194 | $9.58 | Shop at ECS Tuning | |||||
| 02 | Bulb | 12V 5W | 4 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 03 | Reflector/reflecting foil | 4 | 63318363847 | $1.45 | Shop at ECS Tuning | |||||

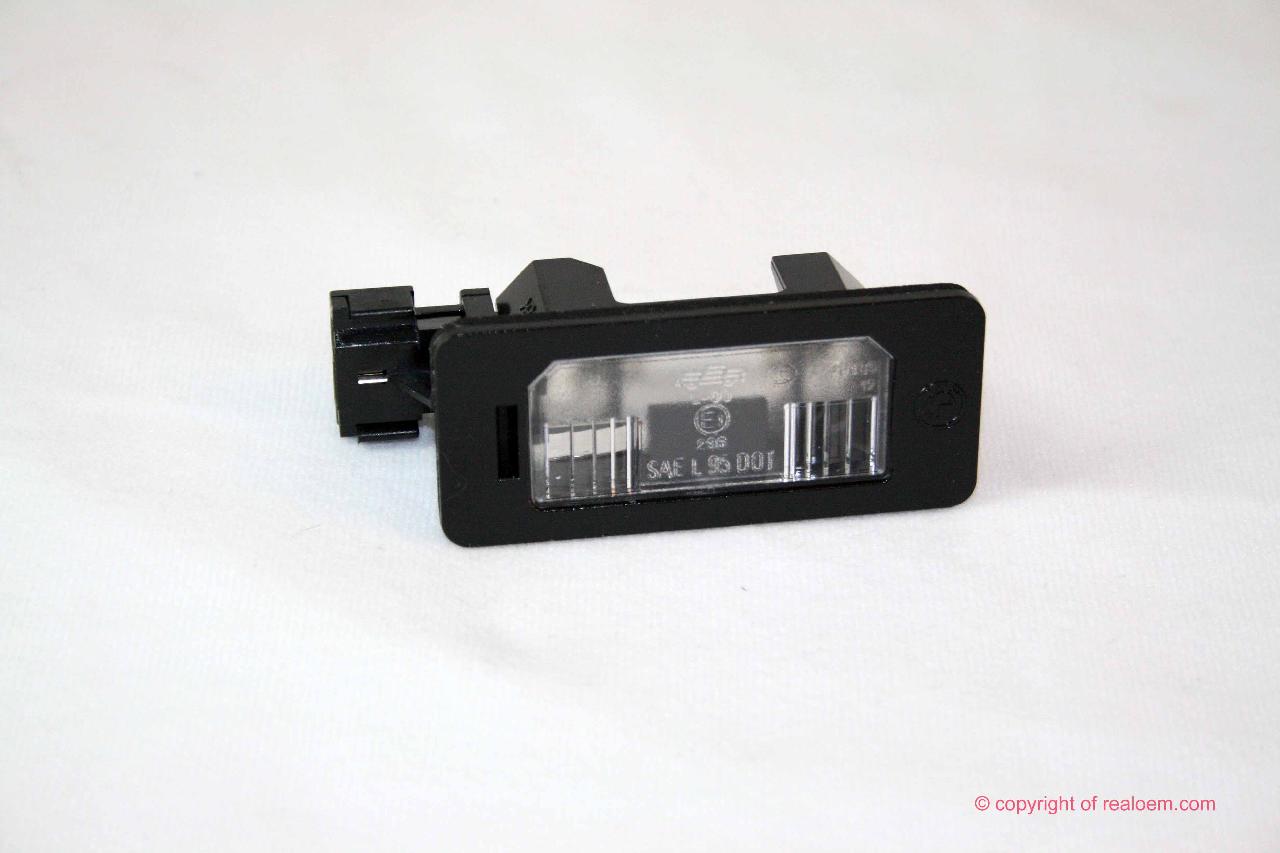

| 04 | Registration plate light | 2 | 63267165646 | $7.92 | Shop at ECS Tuning | |||||
| 05 | Bulb | 12V 5W | 2 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO TRUNK LAMP TRUNK LID |
||||||||||
| 06 | Interior light | 10W | 1 | 63316962039 | $11.92 | Shop at ECS Tuning | ||||
| 07 | Bulb | 12V 10W | 1 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO TRUNK LAMP | ||||||||||
| 08 | Interior light | 1 | 63318371631 | $17.32 | Shop at ECS Tuning | |||||
| 09 | Halogen lamp | 10W | 1 | 63318371610 | $15.73 | Shop at ECS Tuning | ||||
| 10 | Straight bulb socket with bulb | ORANGE | 1 | 61138366595 | $7.12 | Shop at ECS Tuning | ||||
| 11 | Bent bulb socket with bulb | GLASKLAR | 2 | 61138352933 | $7.12 | Shop at ECS Tuning | ||||
| 11 | Bent bulb socket with bulb | ORANGE | 1 | 61138366593 | $7.12 | Shop at ECS Tuning | ||||
| 12 | Mirror lamp | SCHWARZ | 2 | 63312269512 | $32.68 | Shop at ECS Tuning | ||||
| 12 | Mirror lamp | GRAU | 2 | 63318360010 | $32.68 | Shop at ECS Tuning | ||||
| 12 | Mirror lamp | BEIGE | 2 | 63318360011 | $32.68 | Shop at ECS Tuning | ||||
| 13 | Bulb | 12V 10W | 4 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 14 | Universal socket housing uncoded | 3 POL. | 1 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 1 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 1 | 61130056960 | Shop at ECS Tuning | |||||
| 15 | Rep. kit for socket housing | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| -- | Rep. kit for socket housing | 2 POL. | 1 | 61132360043 | Shop at ECS Tuning | |||||
| 16 | Plug terminal black | 2 POL. | 1 | 61131378149 | $1.62 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 with cable | 0,5-1,0 MM² SN | 2 | 61135A07B73 | Shop at ECS Tuning | |||||
