Various lamps/spare bulbs box for BMW 5 Series E39 523i (1998)
This Various lamps/spare bulbs box technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 523i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | not suitable for XENON-LIGHT |
|||||||||
| For vehicles with Xenon Light |
=No |
|||||||||
| 01 | Spare bulbs box | 1 | 63212318127 | Shop at ECS Tuning | ||||||
| 03 | Bulb | 0,25 A | 1 | 63217167019 | $1.50 | ENDED | Shop at ECS Tuning | |||
| 04 | Interior light and reading light w/light | SCHWARZ | 1 | 63312269513 | $220.82 | ENDED | Shop at ECS Tuning | |||
| 04 | Interior light | BEIGE | 1 | 63318363264 | $53.12 | +core | Shop at ECS Tuning | |||
| 04 | Interior light | GRAU | 1 | 63318363265 | $53.12 | Shop at ECS Tuning | ||||
| 05 | Bulb | 12V 10W | 1 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 06 | Interior light and reading light w/light | SCHWARZ | 1 | 63312269513 | $220.82 | ENDED | Shop at ECS Tuning | |||
| 06 | Interior and reading light with wood | SCHWARZ | 1 | 63312269514 | $285.84 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Interior light and reading light | GRAU | 1 | 63318360106 | $104.68 | ENDED | Shop at ECS Tuning | |||
| 06 | Interior light and reading light | BEIGE | 1 | 63318360107 | $255.83 | Shop at ECS Tuning | ||||
| 06 | Interior light and reading light w/light | GRAU | 1 | 63318369511 | $104.68 | ENDED | Shop at ECS Tuning | |||
| 07 | Bulb | 12V 10W | 1 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 08 | Bulb | 12V 10W | 2 | 63311375003 | $16.90 | Shop at ECS Tuning | ||||
| 09 | Interior light rear left | GRAU | 1 | 63318366429 | $35.20 | +core | Shop at ECS Tuning | |||
| 09 | Interior light rear right | BEIGE | 1 | 63318366432 | $35.20 | +core | Shop at ECS Tuning | |||

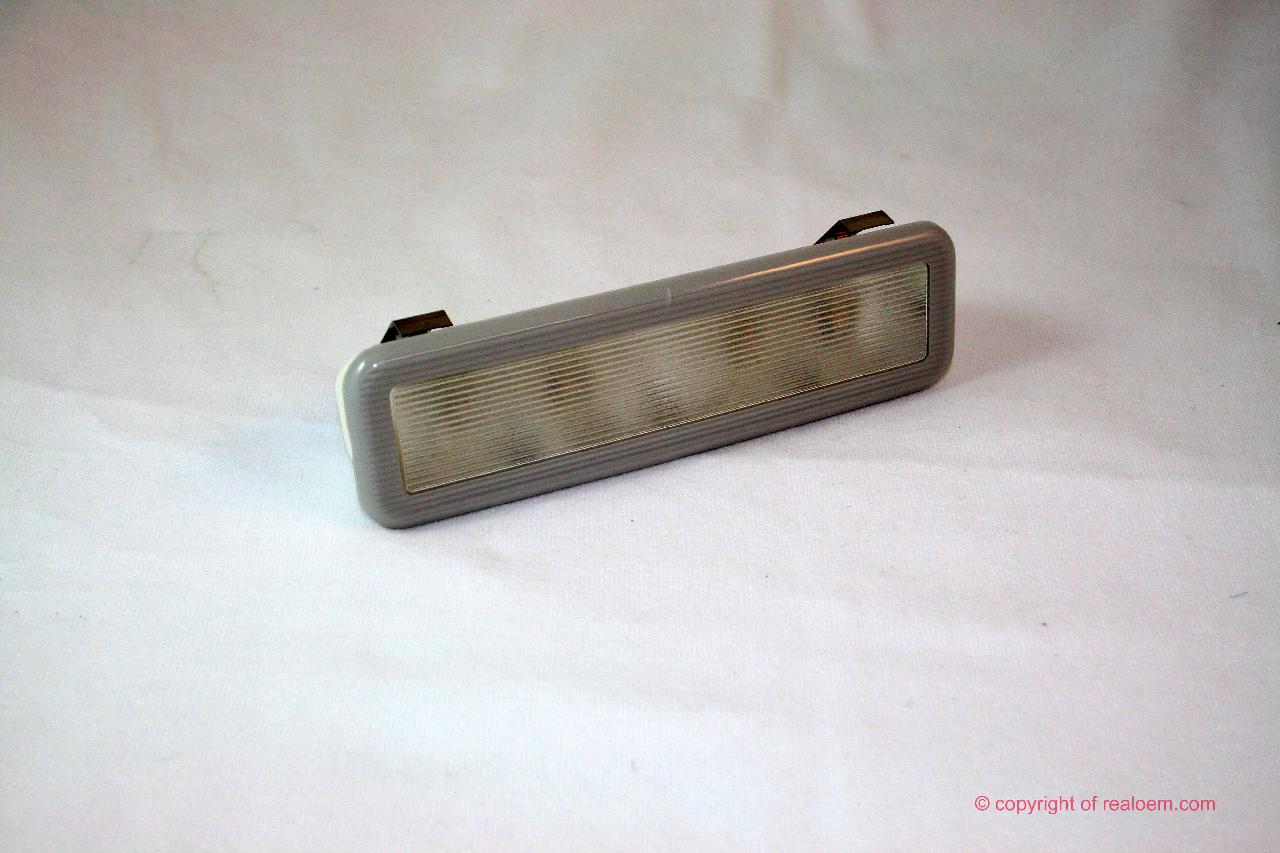

| 09 | Right rear inter.light and reading light | GRAU | 1 | 63318366434 | $47.48 | +core | Shop at ECS Tuning | |||
| 09 | Left rear inter.light and reading light | BEIGE | 1 | 63318366435 | $47.48 | +core | Shop at ECS Tuning | |||
| 10 | Bulb | 12V 5W | 2 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 11 | Left rear inter.light and reading light | GRAU | 1 | 63318366433 | $47.48 | +core | Shop at ECS Tuning | |||
| 11 | Right rear inter.light and reading light | GRAU | 1 | 63318366434 | $47.48 | +core | Shop at ECS Tuning | |||
| 11 | Left rear inter.light and reading light | BEIGE | 1 | 63318366435 | $47.48 | +core | Shop at ECS Tuning | |||
| 11 | Right rear inter.light and reading light | BEIGE | 1 | 63318366436 | $47.48 | +core | Shop at ECS Tuning | |||
| 11 | Right rear inter.light and reading light | SCHWARZ | 1 | 63312497576 | $57.02 | +core | Shop at ECS Tuning | |||
| 11 | Left rear inter.light and reading light | SCHWARZ | 1 | 63312497575 | $57.02 | +core | Shop at ECS Tuning | |||
| 12 | Bulb | 12V 6W | 2 | 63318375993 | $7.94 | Shop at ECS Tuning | ||||
| 13 | Bulb | 12V 10W | 2 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 14 | Interior light | 1 | 63316962040 | $10.07 | Shop at ECS Tuning | |||||
| 15 | Bulb | 12V 5W | 1 | 11/2004 | 63217160805 | $1.58 | Shop at ECS Tuning | |||
| 15 | Bulb | 12V 5W | 1 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
