Signalling light for BMW R45-R65LS..78-85 R65 (1985)

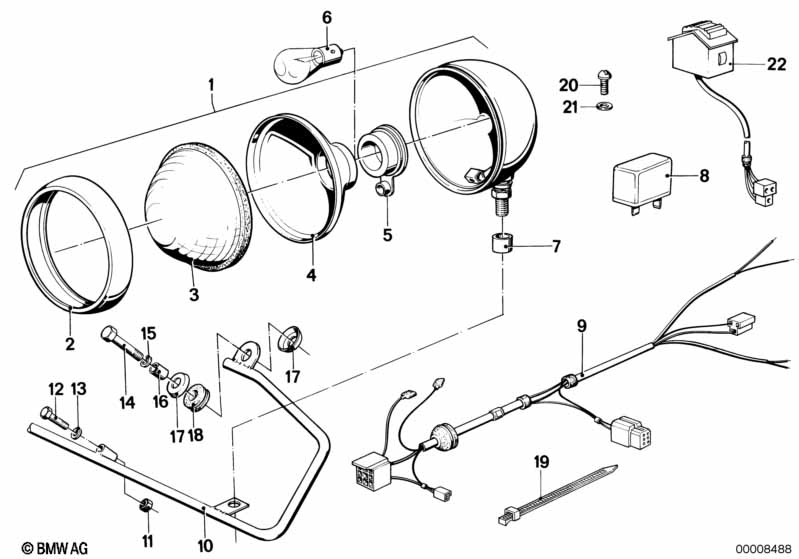

This Signalling light technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 01 | Signalling light,blue | BOSCH | 2 | 63171243154 | +core | Shop at ECS Tuning | ||||
| 01 | Signalling light,red | BOSCH | 2 | 63171243155 | ENDED | Shop at ECS Tuning | ||||
| 02 | Supporting ring | 2 | 63171243157 | Shop at ECS Tuning | ||||||
| 03 | Lens blue | 2 | 63171243161 | ENDED | Shop at ECS Tuning | |||||
| 03 | Lens red | 2 | 63171243162 | ENDED | Shop at ECS Tuning | |||||
| 04 | Reflector | 2 | 63171243159 | ENDED | Shop at ECS Tuning | |||||
| 05 | Bulb socket | 2 | 63171352669 | ENDED | Shop at ECS Tuning | |||||
| 06 | Bulb | 12V 35W | 2 | 07119978055 | $10.04 | ENDED | Shop at ECS Tuning | |||
| 07 | Spacer tube | 2 | 63171243342 | ENDED | Shop at ECS Tuning | |||||
| 08 | Relay for flasher | 1 | 63171352854 | $44.89 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Wiring horn scale officials light loe | BOSCH | 1 | 09/1980 | 61121244106 | ENDED | Shop at ECS Tuning | |||
| 09 | Wiring official signal light | BOSCH | 1 | 09/1980 | 61121244118 | ENDED | Shop at ECS Tuning | |||
| 10 | Bow | 1 | 63171237600 | $98.75 | Shop at ECS Tuning | |||||
| 11 | Self-locking hex nut | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Hex bolt | M6X30-8.8-ZNS3 | 2 | 07119904116 | $0.38 | Shop at ECS Tuning | ||||
| 13 | Washer | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 14 | Hex bolt | M8X30-8.8-ZNS3 | 2 | 07119902901 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Wave washer | 8,4X15-ZNS3 | X | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 16 | Bush | 2 | 31421236243 | $1.33 | Shop at ECS Tuning | |||||
| 17 | Cap | 4 | 31421232243 | $1.96 | Shop at ECS Tuning | |||||
| 18 | Rubber grommet | 2 | 31421236242 | $2.80 | Shop at ECS Tuning | |||||
| 19 | Cable tie | L=200MM/B=3,6MM | 9 | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 19 | Cable tie | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 20 | Fillister head screw | M5X10 | 1 | 07119907639 | $0.40 | Shop at ECS Tuning | ||||
| 21 | Washer | 10X5,3X1-200 HV | 1 | 07119904206 | Shop at ECS Tuning | |||||
| 21 | Washer | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 22 | Additional switch | 1 | 61311243454 | $46.35 | ENDED, +core | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
