Turn indicator, rear for BMW R45-R65LS..78-85 R65LS (1985)

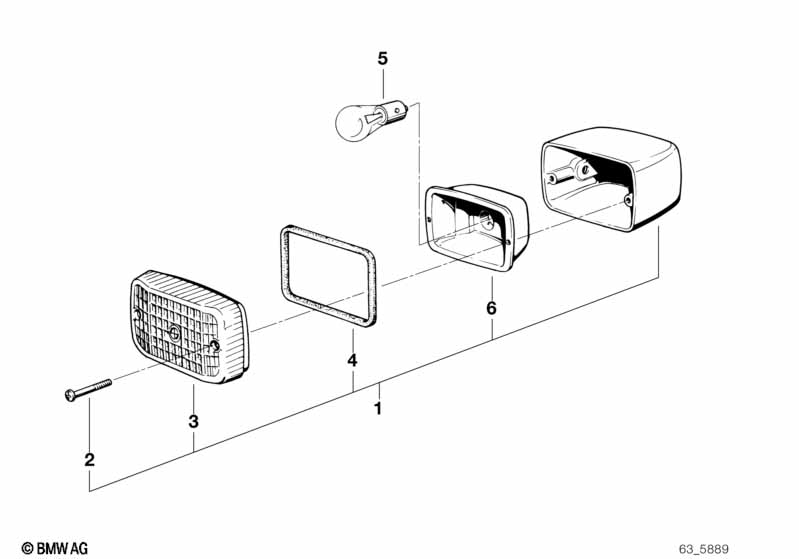

This Turn indicator, rear technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R65LS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Turn indicator | OLSA | 4 | 63231243442 | $28.96 | +core | Shop at ECS Tuning | |||
| 02 | Fillister head screw | M3,5X25 | 8 | 07119907643 | $3.20 | ENDED | Shop at ECS Tuning | |||
| 03 | Lens | OLSA | 4 | 63231243445 | $7.75 | Shop at ECS Tuning | ||||
| 04 | Gasket | OLSA | 4 | 63231243446 | $3.06 | ENDED | Shop at ECS Tuning | |||
| 05 | Longlife bulb | P21W/12V/21W | 4 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 06 | Reflector | OLSA | 4 | 63231243443 | $18.05 | ENDED, +core | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
