Headlight aim control for BMW 3 Series E30 M3 (1990)

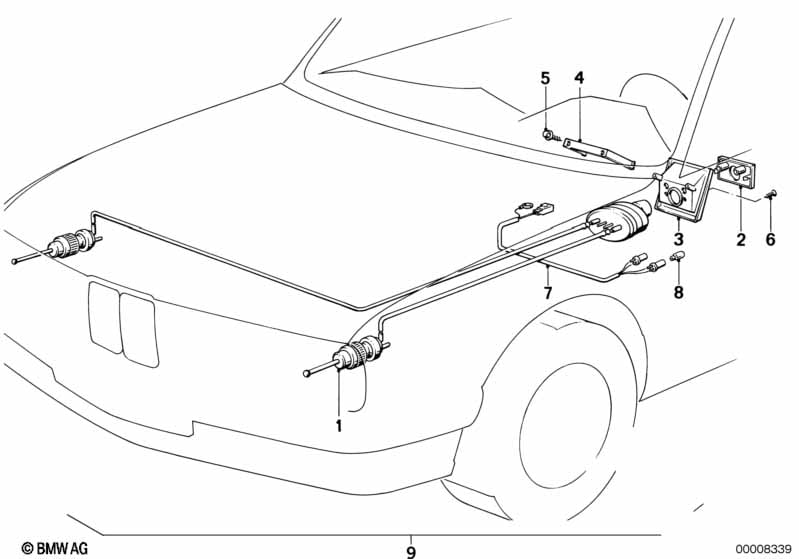

This Headlight aim control technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1990.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Headlight aim control | 1 | 09/1987 | 63121394250 | $200.16 | Shop at ECS Tuning | ||||
| 01 | Headlight aim control | 1 | 09/1989 | 63121394250 | $200.16 | Shop at ECS Tuning | ||||
| For vehicles with Anti block system (ABS) |
=Yes |
|||||||||
| 01 | Headlight aim control | 1 | 09/1989 | 63121394250 | $200.16 | Shop at ECS Tuning | ||||
| 02 | Plate | 1 | 63121370950 | $35.64 | Shop at ECS Tuning | |||||
| 03 | Holder | 1 | 63121370961 | $14.93 | Shop at ECS Tuning | |||||
| 04 | Holder | 1 | 63121372619 | $3.48 | Shop at ECS Tuning | |||||
| 05 | Screw | 2 | 63131370849 | $0.35 | Shop at ECS Tuning | |||||
| 06 | Csk.lenshead screw | ST4,8X13 | 2 | 07119902236 | $0.16 | ENDED | Shop at ECS Tuning | |||
| 07 | Wiring light regulator | 1 | 61121372743 | $36.58 | Shop at ECS Tuning | |||||
| 08 | Bulb | 0,36 WATT | 2 | 61138360844 | $1.62 | Shop at ECS Tuning | ||||
| For vehicles with Anti block system (ABS) |
=Yes |
|||||||||
| 09 | Retrofit kit, headlight range control | 1 | 63129060602 | ENDED | Shop at ECS Tuning | |||||
| 09 | Retrofit kit, headlight range control | 1 | 63129060602 | ENDED | Shop at ECS Tuning | |||||
| ONLY IN CONJUNCTION WITH TRIM PANEL DASHBOARD LOWER |
||||||||||
Notes
- ENDED = the part has been discontinued (no longer available).
