Headlight for BMW 3 Series E30 318i (1985)

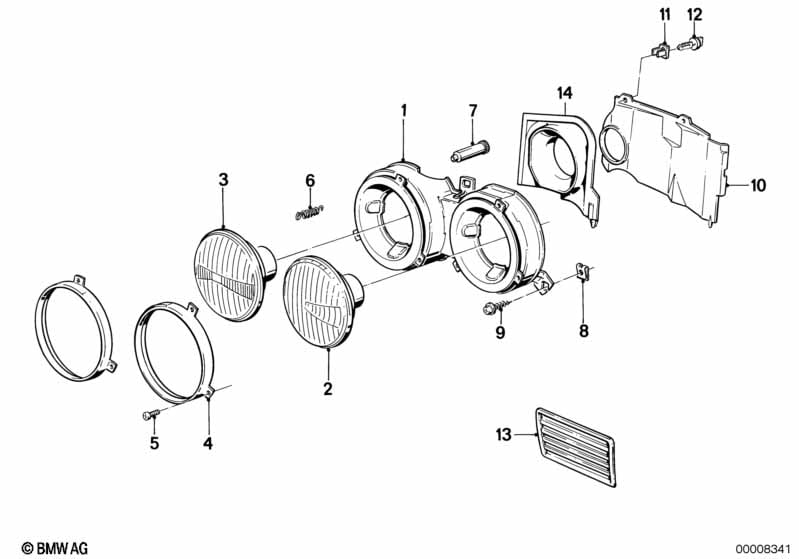

This Headlight technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1985.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with National version japan |
L807A=Yes |
||||||||
| 01 | Supporting frame left | 1 | 09/1987 | 63121370853 | $264.53 | Shop at ECS Tuning | ||||
| 01 | Supporting frame right | 1 | 09/1987 | 63121370854 | $264.53 | ENDED | Shop at ECS Tuning | |||
| 02 | Low beam insert (sealed beam) | 2 | 09/1987 | 63121366539 | ENDED | Shop at ECS Tuning | ||||
| 03 | High beam insert (sealed beam) | 2 | 09/1987 | 63118750240 | $27.64 | ENDED | Shop at ECS Tuning | |||
| 04 | Glass holding frame | 4 | 09/1987 | 63121362477 | $32.43 | Shop at ECS Tuning | ||||
| 05 | Fillister head self-tapping screw | B3,9X8 | X | 09/1987 | 63121359777 | $0.42 | Shop at ECS Tuning | |||
| 06 | Tension spring | 4 | 09/1987 | 63121359719 | $2.68 | Shop at ECS Tuning | ||||
| 07 | Adjusting nut | 8 | 09/1987 | 63121360689 | $2.57 | Shop at ECS Tuning | ||||
| 08 | Body nut | ST6,3-1-ZNS3 | 6 | 09/1987 | 07129904231 | Shop at ECS Tuning | ||||
| 09 | Sheet metal screw | 6 | 09/1987 | 63121352070 | $0.62 | Shop at ECS Tuning | ||||
| 10 | Covering left | 1 | 09/1987 | 51711965241 | $8.73 | Shop at ECS Tuning | ||||
| 11 | Lock insert | 4 | 09/1987 | 51711916199 | $0.32 | Shop at ECS Tuning | ||||
| 12 | Lock | 4 | 09/1987 | 51711916197 | $1.35 | Shop at ECS Tuning | ||||
| 13 | Foglights covering | LINKS | 1 | 09/1987 | 51711933767 | $2.89 | Shop at ECS Tuning | |||
| 14 | Connector | 1 | 09/1987 | 51711942084 | $3.83 | Shop at ECS Tuning | ||||
