Various lamps for BMW 3 Series E36 318is (1998)

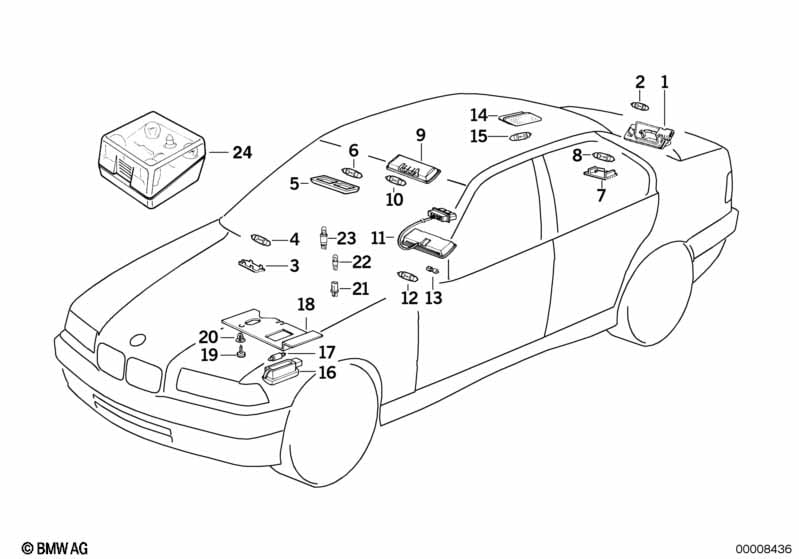

This Various lamps technical drawing provides a detailed breakdown of the assembly for the 3 Series E36 318is. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Registration plate light | 2 | 63261387047 | $10.33 | Shop at ECS Tuning | |||||
| 02 | Bulb | 12V 5W | 2 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 03 | Glove box light with switch | 1 | 03/1993 | 63318360027 | $11.68 | Shop at ECS Tuning | ||||
| 04 | Bulb | 12V 5W | 1 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 05 | Left mirror lamp | SCHWARZ | 1 | 63316961991 | $10.07 | Shop at ECS Tuning | ||||
| 05 | Right mirror lamp | SCHWARZ | 1 | 63316961992 | $10.07 | Shop at ECS Tuning | ||||
| 05 | Left mirror lamp | PERL | 1 | 63318353219 | $21.02 | ENDED | Shop at ECS Tuning | |||
| 05 | Right mirror lamp | PERL | 1 | 63318353220 | $21.02 | ENDED | Shop at ECS Tuning | |||
| 05 | Left mirror lamp | HELLGRAU | 1 | 09/1993 | 63316961995 | $10.07 | ENDED | Shop at ECS Tuning | ||
| 05 | Right mirror lamp | HELLGRAU | 1 | 09/1993 | 63316961996 | $10.07 | Shop at ECS Tuning | |||
| 05 | Left mirror lamp | HELLBEIGE | 1 | 09/1993 | 63316962001 | $10.07 | Shop at ECS Tuning | |||
| 05 | Right mirror lamp | HELLBEIGE | 1 | 09/1993 | 63316962002 | $10.07 | ENDED | Shop at ECS Tuning | ||
| 06 | Bulb | 12V 10W | 2 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 07 | Luggage compartment light | 1 | 63311378089 | $11.83 | Shop at ECS Tuning | |||||
| 08 | Bulb | 12V 10W | 1 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 09 | Interior light | PERL | 1 | 63318357721 | $35.82 | ENDED, +core | Shop at ECS Tuning | |||
| 09 | Interior light | 1 | 09/1993 | 63312259423 | ENDED, +core | Shop at ECS Tuning | ||||
| 09 | Interior light | HELLGRAU | 1 | 09/1993 | 63318361616 | $36.97 | ENDED | Shop at ECS Tuning | ||
| 09 | Interior light | HELLBEIGE | 1 | 09/1993 | 63318362143 | $36.97 | ENDED, +core | Shop at ECS Tuning | ||
| 10 | Bulb | 12V 10W | 2 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| 11 | Interior light and reading light | PERL | 1 | 63311387385 | $108.95 | Shop at ECS Tuning | ||||
| 11 | Interior light and reading light | SCHWARZ | 1 | 63312253590 | $113.82 | Shop at ECS Tuning | ||||
| 11 | Interior light and reading light | HELLGRAU | 1 | 09/1993 | 63318361612 | $113.82 | Shop at ECS Tuning | |||
| 11 | Interior light and reading light | HELLBEIGE | 1 | 09/1993 | 63318361614 | $113.82 | ENDED | Shop at ECS Tuning | ||
| ONLY APPLIES TO BASIC MODUL | ||||||||||
| 11 | Interior light and reading light | SCHWARZ | 1 | 63318361410 | $113.82 | ENDED | Shop at ECS Tuning | |||
| 11 | Interior light and reading light | HELLGRAU | 1 | 63318361629 | $113.82 | Shop at ECS Tuning | ||||
| 11 | Interior light and reading light | HELLBEIGE | 1 | 63318361633 | $113.82 | Shop at ECS Tuning | ||||
| 12 | Bulb | 15W | 1 | 63311379249 | $3.98 | ENDED | Shop at ECS Tuning | |||
| 13 | Bulb | 5W | 2 | 63311374798 | $16.90 | +core | Shop at ECS Tuning | |||
| 14 | Interior light rear left | PERL | 1 | 63312254401 | $20.43 | Shop at ECS Tuning | ||||
| 14 | Interior light rear right | PERL | 1 | 63312254402 | $20.43 | Shop at ECS Tuning | ||||
| 14 | Left rear inter.light and reading light | HELLBEIGE | 1 | 63318376859 | $43.97 | +core | Shop at ECS Tuning | |||
| 14 | Right rear inter.light and reading light | HELLBEIGE | 1 | 63318376860 | $43.97 | +core | Shop at ECS Tuning | |||
| 14 | Left rear inter.light and reading light | HELLGRAU | 1 | 63318376861 | $43.97 | +core | Shop at ECS Tuning | |||
| 14 | Right rear inter.light and reading light | HELLGRAU | 1 | 63318376862 | $43.97 | +core | Shop at ECS Tuning | |||
| 14 | Left rear inter.light and reading light | SCHWARZ | 1 | 63318376863 | $43.97 | +core | Shop at ECS Tuning | |||
| 14 | Right rear inter.light and reading light | SCHWARZ | 1 | 63318376864 | $43.97 | +core | Shop at ECS Tuning | |||
| 14 | Interior light rear right | HELLGRAU | 1 | 63318361620 | $18.40 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Interior light rear left | HELLGRAU | 1 | 63318361619 | $18.40 | ENDED | Shop at ECS Tuning | |||
| 14 | Interior light rear left | HELLGRAU | 1 | 63318361619 | $18.40 | ENDED | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Interior light rear right | HELLGRAU | 1 | 63318361620 | $18.40 | ENDED | Shop at ECS Tuning | |||
| 14 | Interior light rear left | HELLBEIGE | 1 | 09/1993 | 63318361623 | $18.40 | ENDED | Shop at ECS Tuning | ||
| 14 | Interior light rear right | HELLBEIGE | 1 | 09/1993 | 63318361624 | $18.40 | Shop at ECS Tuning | |||
| 15 | Bulb | 12V 5W | 2 | 11/2004 | 63217160805 | $1.58 | Shop at ECS Tuning | |||
| 15 | Bulb | 12V 5W | 2 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO INTERIOR LIGHT AND READING LIGHT |
||||||||||
| 15 | Bulb | 12V 6W | 2 | 63318375993 | $7.94 | Shop at ECS Tuning | ||||
| 16 | Engine compartment light | 1 | 63311378068 | Shop at ECS Tuning | ||||||
| ONLY APPLIES TO FRONT DOOR ENTRANCE LAMP | ||||||||||
| 16 | Interior light | 2 | 63316962040 | $10.07 | Shop at ECS Tuning | |||||
| 17 | Bulb | 12V 10W | 1 | 63217160912 | $1.96 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO FRONT DOOR ENTRANCE LAMP | ||||||||||
| 17 | Bulb | 12V 5W | 2 | 11/2004 | 63217160805 | $1.58 | Shop at ECS Tuning | |||
| 17 | Bulb | 12V 5W | 2 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 18 | Holder for engine room light | 1 | 63318353436 | $9.12 | ENDED | Shop at ECS Tuning | ||||
| 19 | Fillister head self-tapping screw | ST4,8X16 Z2 | 1 | 07119907789 | $0.13 | ENDED | Shop at ECS Tuning | |||
| 20 | Expanding nut | ST 4.8 | 1 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 21 | Bulb socket | X | 64111366170 | $2.37 | Shop at ECS Tuning | |||||
| 23 | Bulb socket with bulb | X | 01/1995 | 61138353797 | $7.12 | Shop at ECS Tuning | ||||
| ALSO FOR ASHTRAY CASSETTE BOX CIGARETTE LIGHTER SOCKET HEATER CONTROL |
||||||||||
| 24 | Spare bulbs box | 1 | 12/2004 | 63212318127 | Shop at ECS Tuning | |||||
