Fog lights for BMW 3 Series E46 318i (2001)

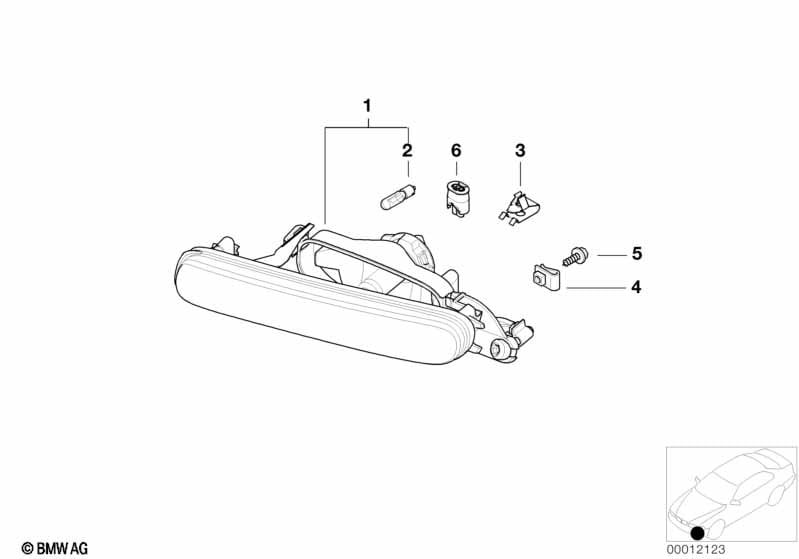

This Fog lights technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fog lights, left | 1 | 09/2001 | 63178361951 | $121.75 | Shop at ECS Tuning | ||||
| 01 | Fog lights, right | 1 | 09/2001 | 63178361952 | $121.75 | Shop at ECS Tuning | ||||
| 02 | Low beam and/or fog lightbulb | HB4 12V 55W | 2 | 09/2001 | 63217160786 | $18.86 | Shop at ECS Tuning | |||
| 03 | Fog lamp clamp | 2 | 09/2001 | 63178380056 | $0.82 | Shop at ECS Tuning | ||||
| 04 | Body nut | ST4,8-9-ZNS3 | 2 | 09/2001 | 07129904150 | $0.25 | Shop at ECS Tuning | |||
| 05 | Hex head screw | ST4,8X16-ZNS3 | 2 | 09/2001 | 07119901299 | $0.25 | Shop at ECS Tuning | |||
| 06 | Socket housing, grey | 2 POL. | 2 | 09/2001 | 61138364498 | $2.33 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Flat spring contact JPT ELA with cable | 0,5-1,0 MM² AG | 4 | 09/2001 | 61130070584 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 318i Fog lights?
- This technical diagram illustrates the Fog lights within the Lighting group for the 3 Series E46 318i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Fog lights, left (Part #63178361951).
- Which models use the hardware listed in this Fog lights?
- The hardware and components featured in the Fog lights are specific to the 3 Series E46 318i produced during 2001. These technical specifications ensure that parts like the Fog lights, left (63178361951) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fog lights assembly?
- Each item in the Fog lights corresponds to the numbered list below the illustration. For the 3 Series E46 318i, you can identify the Fog lights, left by locating its position on the schematic, which then links to the official BMW part number 63178361951 for the Lighting section.
