Various lamps/spare bulbs box for BMW 3 Series E46 330d (2004)

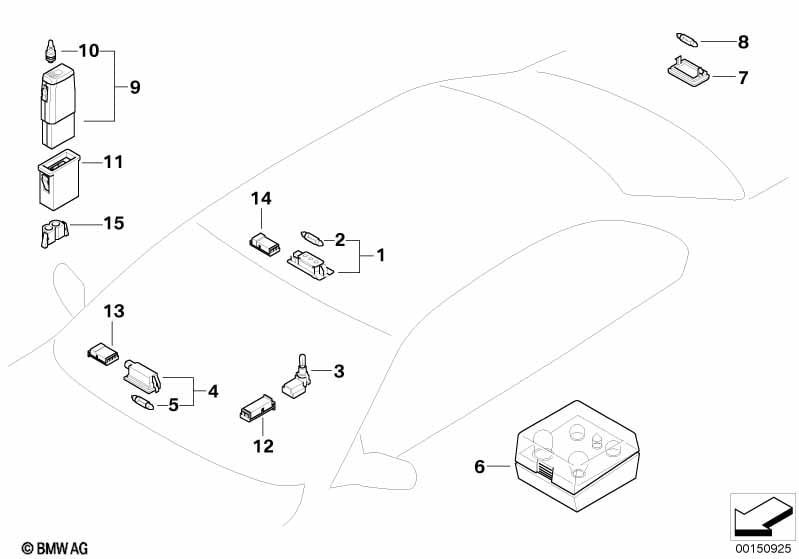

This Various lamps/spare bulbs box technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| ONLY APPLIES TO FLOOR SILL LAMP |
||||||||||
| 01 | Interior light | 2 | 63316962040 | $10.07 | Shop at ECS Tuning | |||||
| 02 | Bulb | 12V 5W | 2 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| ONLY APPLIES TO ASHTRAY |
||||||||||
| 03 | Bulb socket with bulb | 2 | 61138364637 | $7.58 | Shop at ECS Tuning | |||||
| 04 | Glove box light | 1 | 63316962045 | $8.17 | Shop at ECS Tuning | |||||
| 05 | Bulb | 12V 5W | 1 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 06 | Spare bulbs box | 1 | 03/2003 | 63212318128 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Bulb | 12V 21W | 1 | 03/2003 | 07119905328 | $25.94 | Shop at ECS Tuning | |||
| -- | Bulb yellow | 12V 21W | 1 | 03/2003 | 07119905329 | $25.94 | Shop at ECS Tuning | |||
| 08 | Bulb | 12V 5W | 2 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 10 | Bulb | 0,25 A | 1 | 63217167019 | $1.50 | ENDED | Shop at ECS Tuning | |||
| 11 | Support f chargeable handlamp | 1 | 61138352336 | $17.23 | Shop at ECS Tuning | |||||
| 12 | Rep. kit for socket housing | 2 POL. | 2 | 61132360043 | Shop at ECS Tuning | |||||
| 13 | Universal socket housing uncoded | 4 POL. | 1 | 61138380696 | $0.93 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 61130056960 | Shop at ECS Tuning | |||||
| 13 | Rep. kit for socket housing | 4 POL. | 1 | 61132359994 | Shop at ECS Tuning | |||||
| 14 | Universal socket housing uncoded | 3 POL. | 2 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | 2 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | 2 | 61130056960 | Shop at ECS Tuning | |||||
| 15 | Universal socket housing, uncoded | 3 POL. | 1 | 61138352304 | $16.65 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
