Rear light for BMW 1502-2002tii 2000tii (1973)

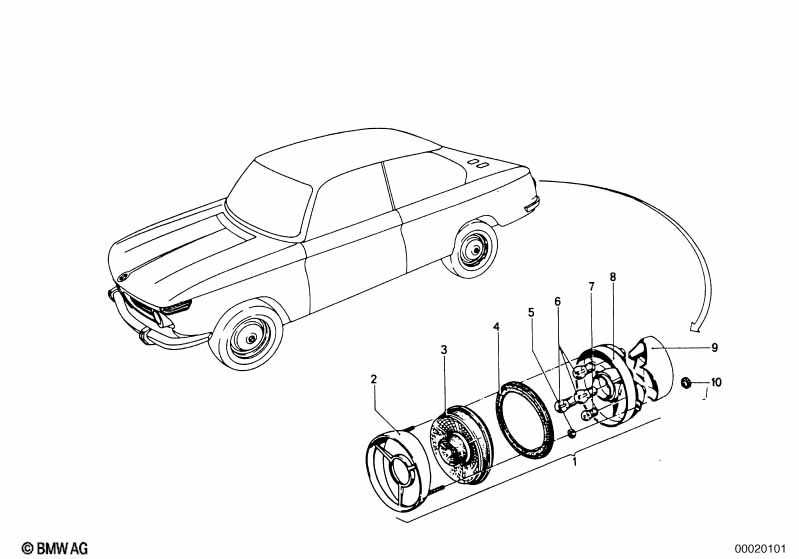

This Rear light technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2000tii. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tail light left | 1 | 63211351519 | ENDED | Shop at ECS Tuning | |||||
| 01 | Tail light right | 1 | 63211351520 | ENDED | Shop at ECS Tuning | |||||
| 02 | Chrome ring | 2 | 63211351523 | $80.86 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lens | 1 | 63211351561 | $146.58 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lens | 1 | 63211351562 | $146.58 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lens with chrome ring, left | 1 | 63211352087 | ENDED | Shop at ECS Tuning | |||||
| 03 | Lens with chrome ring, right | 1 | 63211352088 | ENDED | Shop at ECS Tuning | |||||
| 04 | Gasket | 2 | 63211351528 | $18.40 | Shop at ECS Tuning | |||||
| 05 | Nut | M 5 | 4 | 63211350710 | ENDED | Shop at ECS Tuning | ||||
| 06 | Bulb | P21W/12V/21W | 6 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 06 | Longlife bulb | P21W/12V/21W | 6 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 07 | Bulb | 12V 5W | 2 | 07119905336 | $1.58 | Shop at ECS Tuning | ||||
| 08 | Reflector left | 1 | 63211351521 | ENDED | Shop at ECS Tuning | |||||
| 08 | Reflector right | 1 | 63211351522 | ENDED, +core | Shop at ECS Tuning | |||||
| 09 | Covering cap | 2 | 63211351526 | ENDED | Shop at ECS Tuning | |||||
| 10 | Knurled head nut | M5 | 4 | 63218654122 | $0.90 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
