Headlight for BMW 1502-2002tii 1602 (1975)

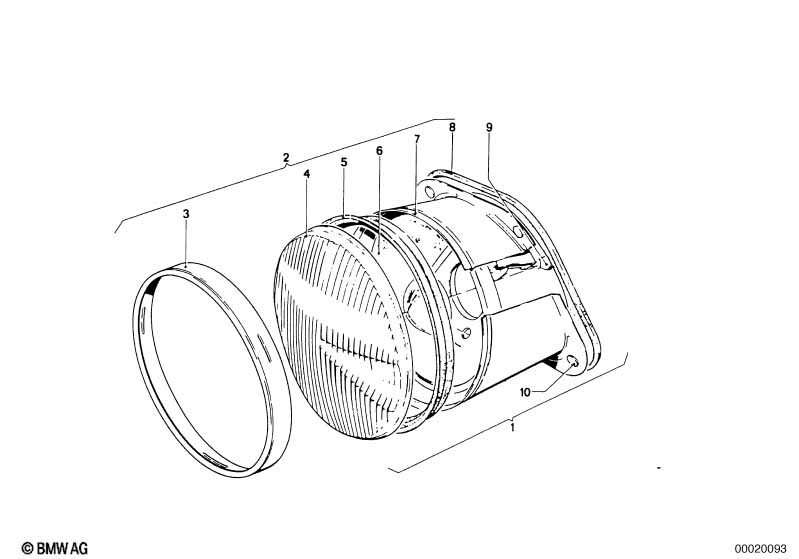

This Headlight technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 07 | Supporting ring | BOSCH | 2 | 63121357189 | ENDED | Shop at ECS Tuning | ||||
| 08 | Gasket | BOSCH | 2 | 63128650136 | ENDED | Shop at ECS Tuning | ||||
| 09 | Adjusting screw | 2 | 63128650137 | ENDED | Shop at ECS Tuning | |||||
| 09 | Adjusting screw | 2 | 63128650138 | ENDED | Shop at ECS Tuning | |||||
| 10 | Screw | 4 | 63128650147 | $1.14 | Shop at ECS Tuning |
