Headlight for BMW 1502-2002tii 2002 (1971)

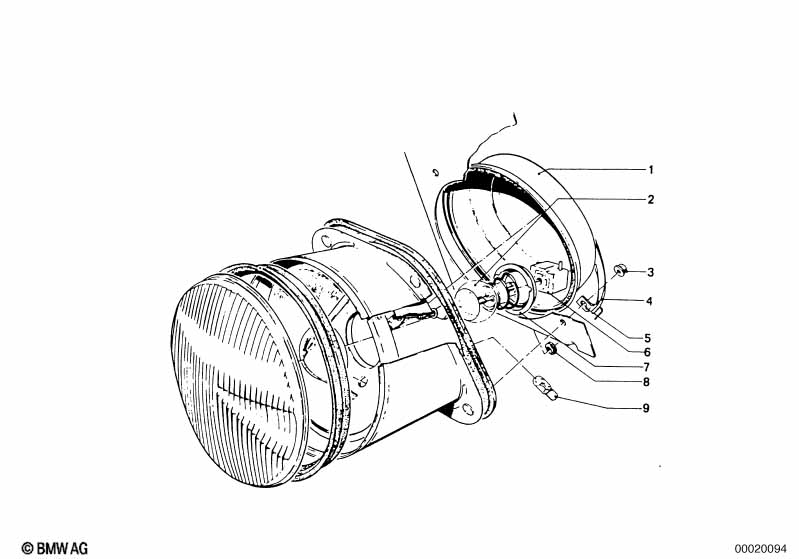

This Headlight technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Covering cap | 2 | 63128650140 | $6.21 | ENDED | Shop at ECS Tuning | ||||
| 02 | Bulb | 12V 40/45W | 2 | 01/1966 | 08/1973 | 07119978396 | $7.47 | Shop at ECS Tuning | ||
| 03 | Hex nut with plate | M5 | 8 | 07147202368 | Shop at ECS Tuning | |||||
| 04 | O-ring | 100X4 | 2 | 07119905680 | Shop at ECS Tuning | |||||

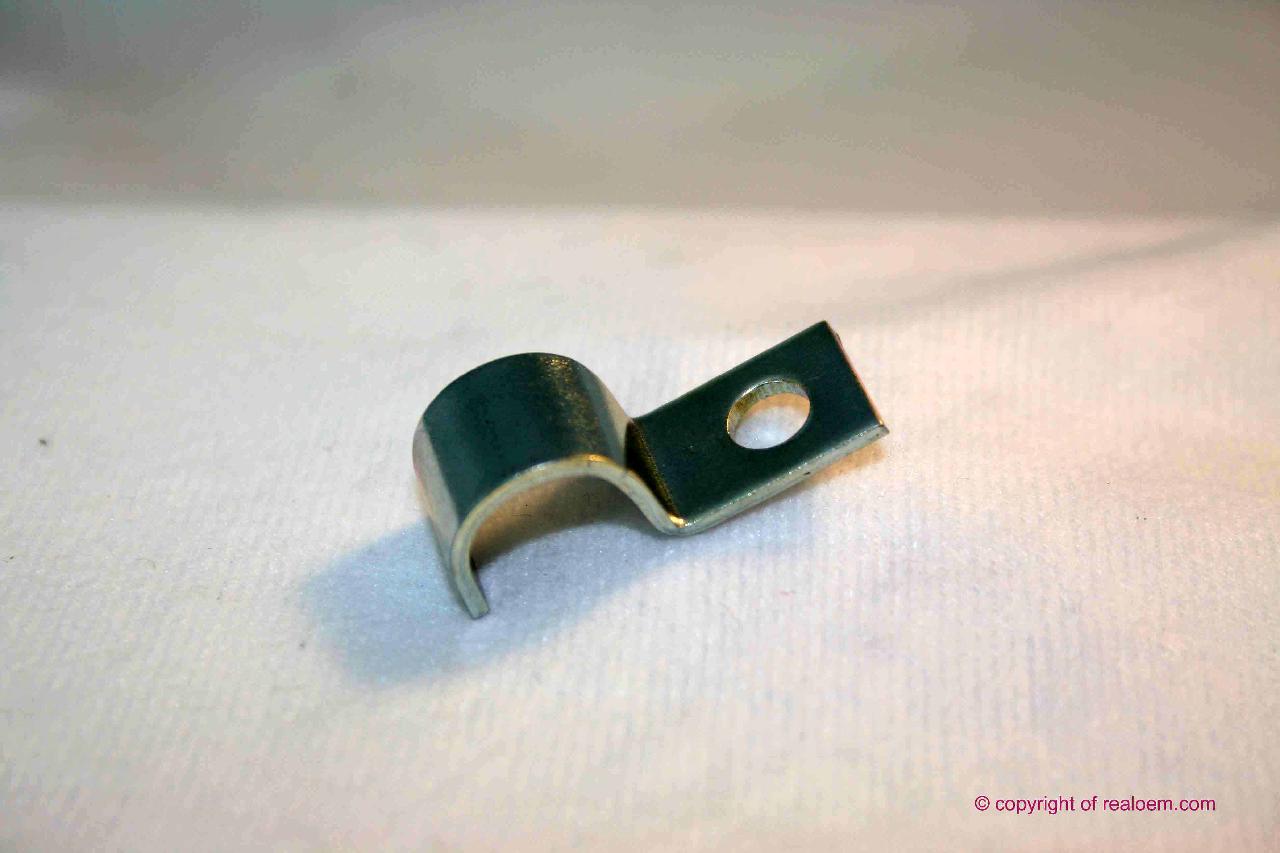

| 05 | Clamp | 1X12 | 4 | 07119977235 | $2.12 | ENDED | Shop at ECS Tuning | |||
| 07 | Bulb support | 2 | 63128650124 | $17.41 | ENDED | Shop at ECS Tuning | ||||
| 08 | Rubber grommet | 2 | 63128071754 | $1.13 | Shop at ECS Tuning | |||||
| 09 | Bulb | 12V 4W | 2 | 07509063576 | $1.58 | Shop at ECS Tuning |
