Rear fog light for BMW 1502-2002tii 1602 (1972)

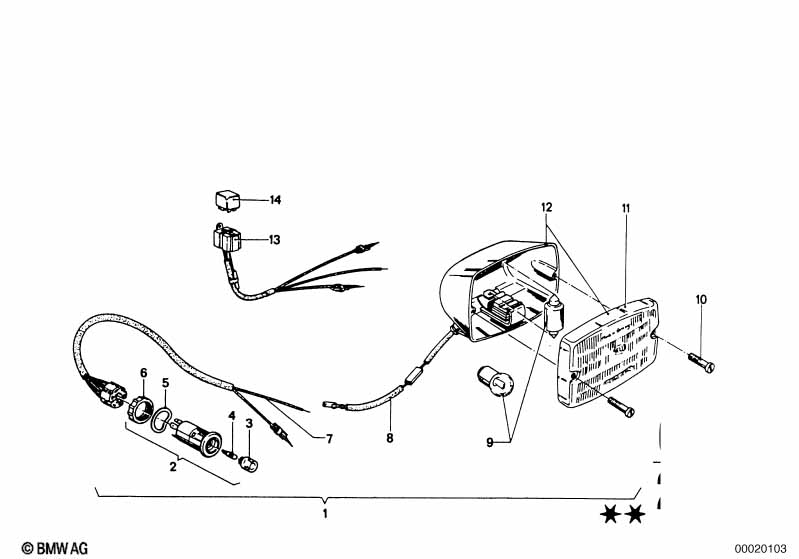

This Rear fog light technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1972.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear fog light | 1 | 63241359950 | ENDED | Shop at ECS Tuning | |||||
| 02 | Switch fog tail light | 1 | 61311356901 | ENDED | Shop at ECS Tuning | |||||
| For vehicles with National version Belgium or National version france |
L811A=Yes L813A=Yes |
|||||||||
| 02 | Fog lamp switch | 1 | 61311356873 | ENDED | Shop at ECS Tuning | |||||
| 04 | Bulb | 1,2W | 1 | 62149557328 | $2.68 | ENDED | Shop at ECS Tuning | |||
| 05 | Wave washer | 32MM | 1 | 13231359249 | ENDED | Shop at ECS Tuning | ||||
| 06 | Threaded ring | 1 | 13231359300 | $2.34 | ENDED | Shop at ECS Tuning | ||||
| 07 | Wiring rear fog light | 1 | 61121357154 | ENDED | Shop at ECS Tuning | |||||
| Ulo | ||||||||||
| 09 | Bulb | P21W/12V/21W | 1 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 09 | Longlife bulb | P21W/12V/21W | 1 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| Hella | ||||||||||
| 09 | Bulb | 12V 18W | 1 | 07119978311 | $2.03 | ENDED | Shop at ECS Tuning | |||
| 10 | Fillister head screw | 2 | 63241353728 | ENDED | Shop at ECS Tuning | |||||
| Ulo | ||||||||||
| 11 | Lens | ULO | 1 | 63241353720 | ENDED | Shop at ECS Tuning | ||||
| Hella | ||||||||||
| 11 | Lens | HELLA | 1 | 63241354142 | ENDED | Shop at ECS Tuning | ||||
| 12 | Rear fog light | ULO | 1 | 63241353721 | ENDED | Shop at ECS Tuning | ||||
| 12 | Rear fog light | HELLA | 1 | 63241354141 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with National version Belgium or National version france |
L811A=Yes L813A=Yes |
|||||||||
| 13 | Cable | 1 | 61121359342 | ENDED | Shop at ECS Tuning | |||||
| 14 | Relay, change-over contact,signal violet | 1 | 61361388911 | $13.96 | Shop at ECS Tuning | |||||
