Fog lights for BMW 2.5CS-3.0CSL 3.0CSi (1975)

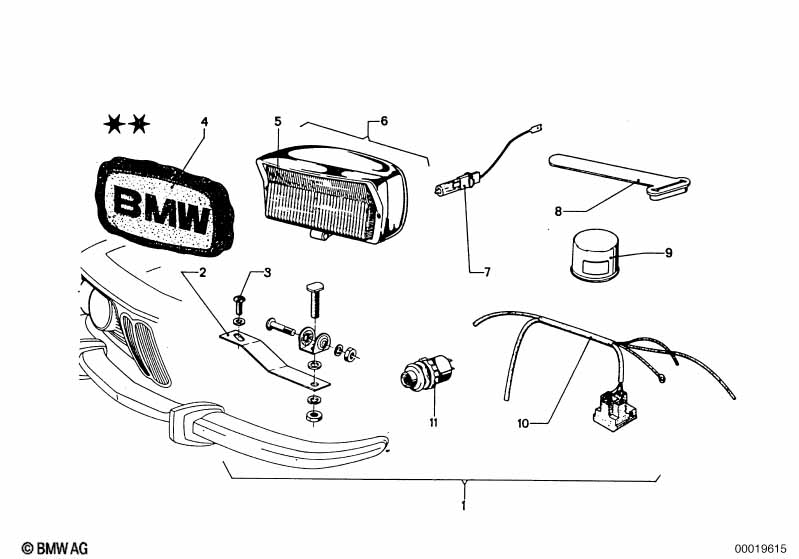

This Fog lights technical drawing provides a detailed breakdown of the assembly for the 2.5CS-3.0CSL 3.0CSi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Reinforcement left | 1 | 51111811253 | ENDED | Shop at ECS Tuning | |||||
| 02 | Reinforcement right | 1 | 51111811254 | ENDED | Shop at ECS Tuning | |||||
| 03 | Saucer-head screw | 4 | 63171355346 | ENDED | Shop at ECS Tuning | |||||
| 04 | Covering cap | 2 | 72601355838 | ENDED | Shop at ECS Tuning | |||||
| 05 | Lamp lens | 2 | 63171350653 | ENDED | Shop at ECS Tuning | |||||
| 05 | Headlight insert | 2 | 63171355602 | ENDED | Shop at ECS Tuning | |||||
| 06 | Fog lamp, halogen | 2 | 63171350785 | ENDED | Shop at ECS Tuning | |||||
| 07 | Bulb | 12V 55W H3 | 2 | 63217160779 | $21.84 | Shop at ECS Tuning | ||||
| 08 | Cable tie | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 10 | Wiring set fog lights | 1 | 61121352186 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2.5CS-3.0CSL 3.0CSi Fog lights?
- This technical diagram illustrates the Fog lights within the Lighting group for the 2.5CS-3.0CSL 3.0CSi produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Reinforcement left (Part #51111811253).
- Which models use the hardware listed in this Fog lights?
- The hardware and components featured in the Fog lights are specific to the 2.5CS-3.0CSL 3.0CSi produced during 1975. These technical specifications ensure that parts like the Reinforcement left (51111811253) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fog lights assembly?
- Each item in the Fog lights corresponds to the numbered list below the illustration. For the 2.5CS-3.0CSL 3.0CSi, you can identify the Reinforcement left by locating its position on the schematic, which then links to the official BMW part number 51111811253 for the Lighting section.
