Headlight for BMW 2500-3.3Li 3.0S (1973)

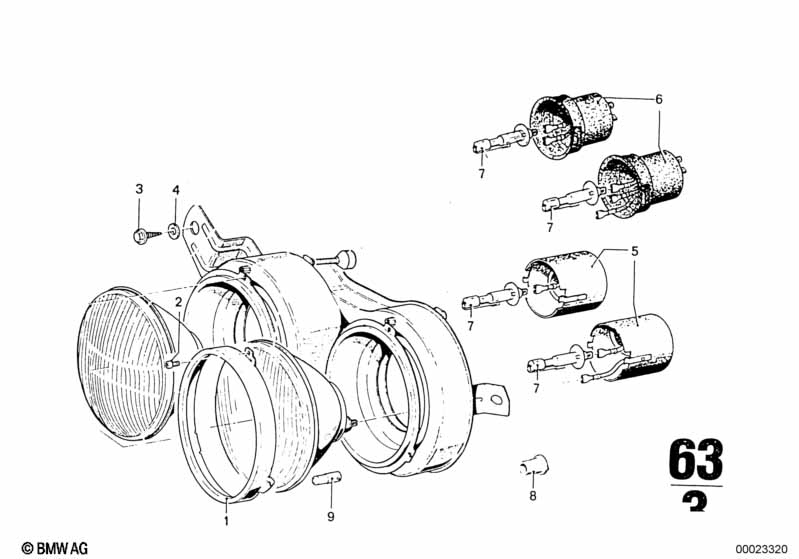

This Headlight technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0S. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Glass holding frame | 4 | 63121362477 | $32.43 | Shop at ECS Tuning | |||||
| 02 | Fillister head screw | M4X8 | 12 | 63121355119 | ENDED | Shop at ECS Tuning | ||||
| 02 | Fillister head self-tapping screw | B3,9X8 | 12 | 63121359777 | $0.42 | Shop at ECS Tuning | ||||
| 03 | Sheet metal screw | 6 | 63121352070 | $0.62 | Shop at ECS Tuning | |||||
| 04 | Rubber washer | 6 | 34414045712 | $0.20 | Shop at ECS Tuning | |||||
| 05 | Covering cap | 2 | 08/1968 | 02/1977 | 63121351107 | $43.25 | ENDED | Shop at ECS Tuning | ||
| 05 | Covering cap | 2 | 08/1968 | 02/1977 | 63121351110 | ENDED | Shop at ECS Tuning | |||
| 06 | Covering cap | HELLA | 2 | 08/1968 | 02/1977 | 63121372732 | $26.55 | ENDED | Shop at ECS Tuning | |
| 06 | Covering cap | HELLA | 2 | 08/1968 | 02/1977 | 63121381189 | $22.55 | Shop at ECS Tuning | ||
| 07 | Bulb | 12V 55W H1 | 4 | 08/1968 | 02/1977 | 63217160777 | $11.68 | Shop at ECS Tuning | ||
| 08 | Bulb socket | 4 | 08/1968 | 02/1977 | 62148680130 | $3.25 | Shop at ECS Tuning | |||
| 09 | Bulb | 12V 4W | 4 | 08/1968 | 02/1977 | 07509063576 | $1.58 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0S Headlight?
- This technical diagram illustrates the Headlight within the Lighting group for the 2500-3.3Li 3.0S produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Glass holding frame (Part #63121362477).
- Which models use the hardware listed in this Headlight?
- The hardware and components featured in the Headlight are specific to the 2500-3.3Li 3.0S produced during 1973. These technical specifications ensure that parts like the Glass holding frame (63121362477) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Headlight assembly?
- Each item in the Headlight corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0S, you can identify the Glass holding frame by locating its position on the schematic, which then links to the official BMW part number 63121362477 for the Lighting section.
