Headlight for BMW 2500-3.3Li 3.0L (1977)

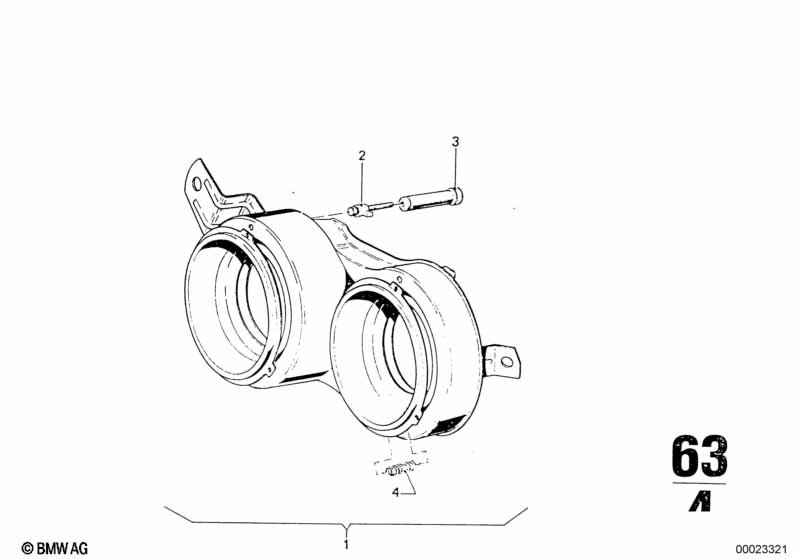

This Headlight technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1977.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Supporting frame left | 1 | 08/1968 | 02/1977 | 63121360181 | $396.18 | ENDED | Shop at ECS Tuning | ||
| 01 | Supporting frame right | 1 | 08/1968 | 02/1977 | 63121360182 | $396.18 | ENDED | Shop at ECS Tuning | ||
| 02 | Adjusting screw | 8 | 08/1968 | 02/1977 | 63121354448 | $2.43 | Shop at ECS Tuning | |||
| 03 | Adjusting nut | 8 | 08/1968 | 02/1977 | 63121354449 | $1.61 | ENDED | Shop at ECS Tuning | ||
| 04 | Tension spring | 4 | 08/1968 | 02/1977 | 63121359719 | $2.68 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.0L Headlight?
- This technical diagram illustrates the Headlight within the Lighting group for the 2500-3.3Li 3.0L produced during 1977. It provides a detailed exploded view of the components, identifying key parts such as the Supporting frame left (Part #63121360181).
- Which models use the hardware listed in this Headlight?
- The hardware and components featured in the Headlight are specific to the 2500-3.3Li 3.0L produced during 1977. These technical specifications ensure that parts like the Supporting frame left (63121360181) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Headlight assembly?
- Each item in the Headlight corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.0L, you can identify the Supporting frame left by locating its position on the schematic, which then links to the official BMW part number 63121360181 for the Lighting section.
