Fog lights for BMW 2500-3.3Li 3.0Si (1973)

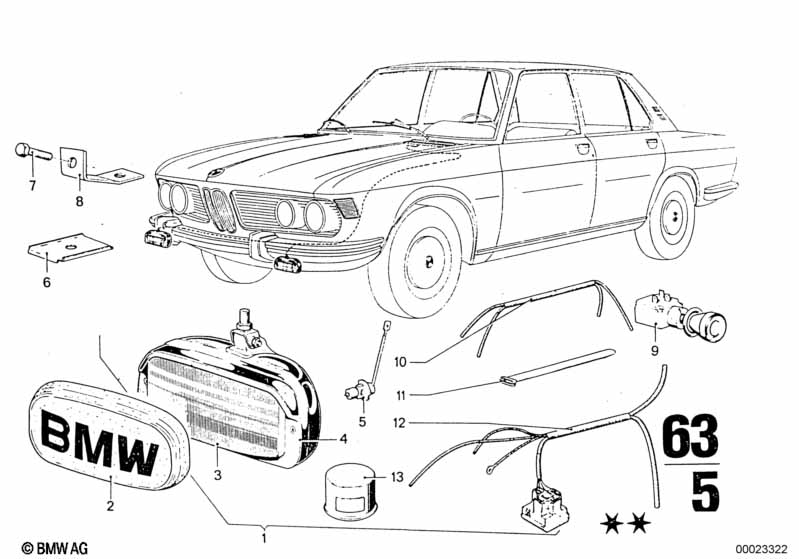

This Fog lights technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0Si. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Installing set fog lamps,chromed | 1 | 09/1973 | 02/1977 | 63171357765 | ENDED | Shop at ECS Tuning | |||
| 02 | Covering cap | 2 | 72601355838 | ENDED | Shop at ECS Tuning | |||||
| 03 | Headlight insert | 2 | 63171355602 | ENDED | Shop at ECS Tuning | |||||
| 04 | Fog lights | 2 | 63171351420 | $81.19 | ENDED | Shop at ECS Tuning | ||||
| 05 | Bulb | 12V 55W H3 | 2 | 63217160779 | $21.84 | Shop at ECS Tuning | ||||
| 06 | Securing plate | 1 | 63171351639 | $3.37 | ENDED | Shop at ECS Tuning | ||||
| 06 | Securing plate | 1 | 63171351640 | ENDED | Shop at ECS Tuning | |||||
| 07 | Hex bolt | M8X30-ZN | 2 | 07119913662 | $0.22 | Shop at ECS Tuning | ||||
| 08 | Holder | 1 | 63171351415 | $3.38 | ENDED | Shop at ECS Tuning | ||||
| 08 | Holder | 1 | 63171351416 | $10.83 | ENDED | Shop at ECS Tuning | ||||
| 09 | Fog lamp switch | 1 | 09/1973 | 02/1977 | 61311356873 | ENDED | Shop at ECS Tuning | |||
| 11 | Cable tie | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 12 | Wiring set fog lights | 1 | 05/1971 | 02/1977 | 61121354072 | ENDED | Shop at ECS Tuning | |||
| 13 | Relay | GELB | 1 | 09/1973 | 02/1977 | 61311373585 | $23.75 | ENDED | Shop at ECS Tuning | |
| 13 | Mini-relay | 1 | 09/1973 | 02/1977 | 61311373588 | $11.38 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
