Front turn indicator for BMW 2500-3.3Li 2800 (1971)

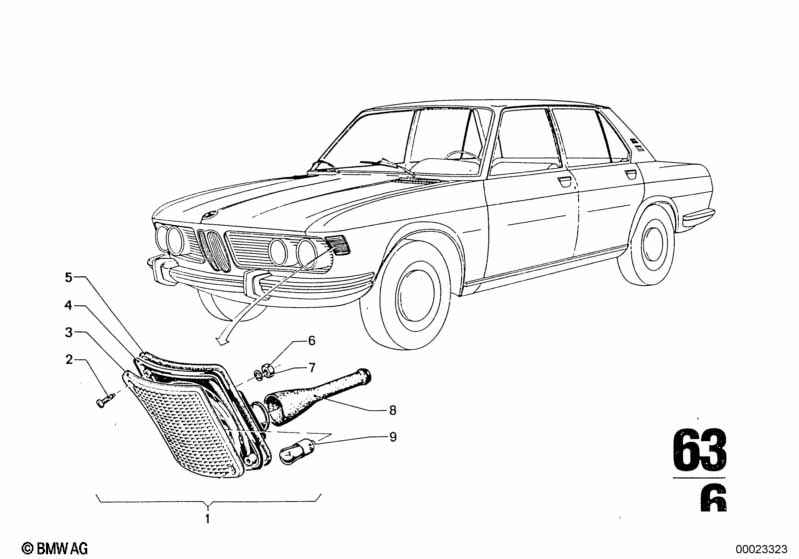

This Front turn indicator technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left turn indicator | ECE | 1 | 08/1968 | 02/1977 | 63131350001 | $199.12 | ENDED | Shop at ECS Tuning | |
| 01 | Right turn indicator | ECE | 1 | 08/1968 | 02/1977 | 63131350002 | $199.12 | Shop at ECS Tuning | ||
| 02 | Fillister head screw | 4X15 | 2 | 08/1968 | 02/1977 | 63131352013 | ENDED | Shop at ECS Tuning | ||
| 03 | Lens left | 1 | 63131356807 | $40.62 | Shop at ECS Tuning | |||||
| 03 | Lens right | 1 | 63131356808 | $40.62 | Shop at ECS Tuning | |||||
| 03 | Lens left | 1 | 08/1968 | 02/1977 | 63131350005 | $40.62 | Shop at ECS Tuning | |||
| 03 | Lens right | 1 | 08/1968 | 02/1977 | 63131350006 | $40.62 | Shop at ECS Tuning | |||
| 04 | Bulb socket, left | 1 | 08/1968 | 02/1977 | 63131351091 | ENDED | Shop at ECS Tuning | |||
| 04 | bulb socket, right | 1 | 08/1968 | 02/1977 | 63131351092 | $152.89 | ENDED | Shop at ECS Tuning | ||
| 05 | Base | 1 | 08/1968 | 02/1977 | 63131350007 | ENDED | Shop at ECS Tuning | |||
| 05 | Base | 1 | 08/1968 | 02/1977 | 63131350008 | $5.69 | ENDED | Shop at ECS Tuning | ||
| 06 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Tooth washer | J6,4 | 2 | 07119936134 | $0.67 | Shop at ECS Tuning | ||||
| 08 | Rubber grommet | 2 | 63131350454 | ENDED | Shop at ECS Tuning | |||||
| 09 | Bulb | P21W/12V/21W | 2 | 08/1968 | 02/1977 | 63217160789 | $1.96 | Shop at ECS Tuning | ||
| 09 | Longlife bulb | P21W/12V/21W | 2 | 08/1968 | 02/1977 | 63217160790 | $2.38 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
