Side marker light for BMW 2500-3.3Li 3.0SBav (1973)

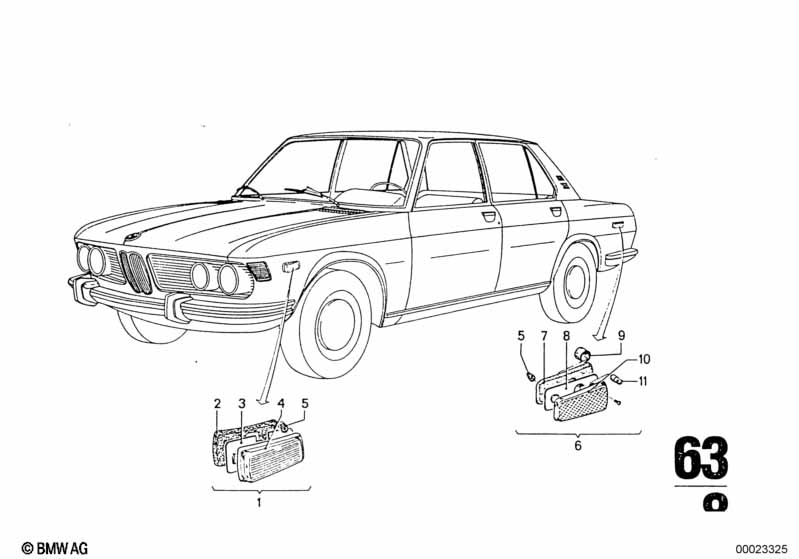

This Side marker light technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.0SBav. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Side reflector front | 1 | 63141351891 | $38.76 | Shop at ECS Tuning | |||||
| 01 | Side reflector front | 1 | 63141351892 | $38.76 | ENDED | Shop at ECS Tuning | ||||
| 01 | Side marker | 4 | 63141354184 | ENDED | Shop at ECS Tuning | |||||
| 02 | Base | 1 | 63141352939 | ENDED | Shop at ECS Tuning | |||||
| 02 | Base | 1 | 63141352940 | ENDED | Shop at ECS Tuning | |||||
| 03 | Gasket | 1 | 63141352938 | ENDED | Shop at ECS Tuning | |||||
| 05 | Cap nut | M4 | 8 | 41335480120 | $0.20 | Shop at ECS Tuning | ||||
| 06 | Side marker light | 1 | 63141352989 | $115.39 | Shop at ECS Tuning | |||||
| 06 | Side marker light, rear, right | 1 | 63141352990 | $115.39 | ENDED, +core | Shop at ECS Tuning | ||||
| 08 | Bulb socket | 1 | 63141352991 | ENDED | Shop at ECS Tuning | |||||
| 08 | Bulb socket | 1 | 63141352992 | ENDED | Shop at ECS Tuning | |||||
| 09 | Protection cap | 2 | 63141353027 | ENDED | Shop at ECS Tuning | |||||
| 10 | Side marker | 2 | 63141352952 | $14.17 | Shop at ECS Tuning | |||||
| 11 | Bulb | 12V 4W | 2 | 07509063576 | $1.58 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
