Rear light for BMW 2500-3.3Li 2800 (1975)

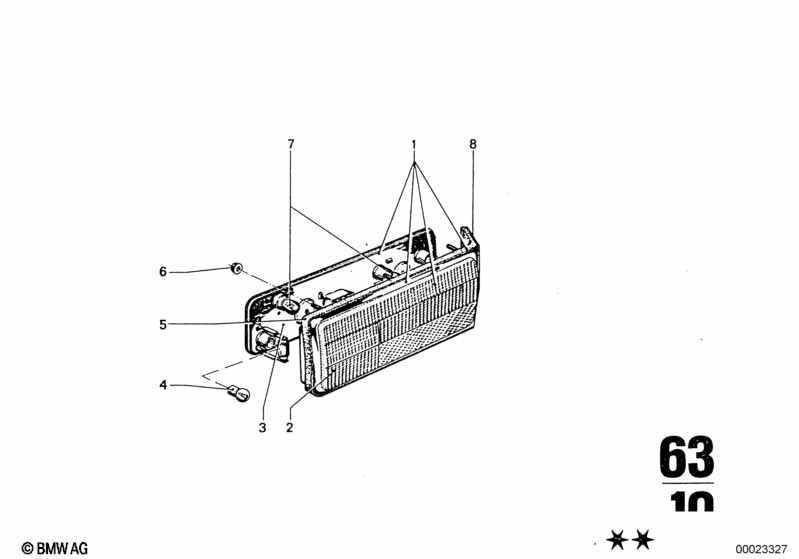

This Rear light technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Tail light left | 1 | 05/1971 | 02/1977 | 63211353723 | $319.18 | ENDED | Shop at ECS Tuning | ||
| 01 | Tail light right | 1 | 05/1971 | 02/1977 | 63211353724 | $332.57 | ENDED | Shop at ECS Tuning | ||
| 02 | Lens left | 1 | 05/1971 | 02/1977 | 63211355101 | $235.86 | ENDED | Shop at ECS Tuning | ||
| 02 | Lens right | 1 | 05/1971 | 02/1977 | 63211355102 | $235.86 | ENDED | Shop at ECS Tuning | ||
| For vehicles with National version france |
L813A=Yes |
|||||||||
| 02 | Lens left | 1 | 05/1971 | 02/1977 | 63211355103 | ENDED | Shop at ECS Tuning | |||
| 02 | Lens right | 1 | 05/1971 | 02/1977 | 63211355104 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering plate | 1 | 05/1971 | 02/1977 | 63211353733 | ENDED | Shop at ECS Tuning | |||
| 03 | Covering plate | 1 | 05/1971 | 02/1977 | 63211353734 | $70.77 | ENDED | Shop at ECS Tuning | ||
| 04 | Bulb | 12V 5W | 4 | 07119905336 | $1.58 | Shop at ECS Tuning | ||||
| 05 | Base | 1 | 63211353739 | $31.49 | ENDED | Shop at ECS Tuning | ||||
| 05 | Base | 1 | 63211353740 | $31.49 | ENDED | Shop at ECS Tuning | ||||
| 06 | Hex nut with plate | M5 | 10 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 07 | Bulb | P21W/12V/21W | 6 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 07 | Longlife bulb | P21W/12V/21W | 6 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 08 | Left finisher | 1 | 63211355215 | $10.83 | Shop at ECS Tuning | |||||
| 08 | Right finisher | 1 | 63211355216 | $10.83 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
