Rear light for BMW 2500-3.3Li 3.3L (1975)

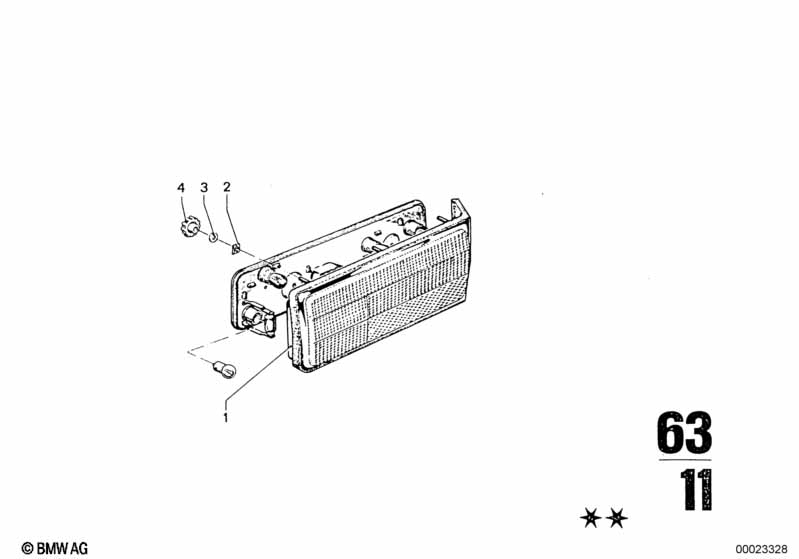

This Rear light technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3L. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1975.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Reflector left | 1 | 05/1971 | 02/1977 | 63211355107 | $174.89 | Shop at ECS Tuning | |||
| 01 | Reflector right | 1 | 05/1971 | 02/1977 | 63211355108 | $198.65 | +core | Shop at ECS Tuning | ||
| 02 | Clip | 4 | 63211355674 | ENDED | Shop at ECS Tuning | |||||
| 03 | Rubber washer | 8 | 63211355217 | ENDED | Shop at ECS Tuning | |||||
| 04 | Knurled head nut | M5 | 2 | 63218654122 | $0.90 | ENDED | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 3.3L Rear light?
- This technical diagram illustrates the Rear light within the Lighting group for the 2500-3.3Li 3.3L produced during 1975. It provides a detailed exploded view of the components, identifying key parts such as the Reflector left (Part #63211355107).
- Which models use the hardware listed in this Rear light?
- The hardware and components featured in the Rear light are specific to the 2500-3.3Li 3.3L produced during 1975. These technical specifications ensure that parts like the Reflector left (63211355107) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear light assembly?
- Each item in the Rear light corresponds to the numbered list below the illustration. For the 2500-3.3Li 3.3L, you can identify the Reflector left by locating its position on the schematic, which then links to the official BMW part number 63211355107 for the Lighting section.
