Various lamps for BMW 2500-3.3Li 2800 (1970)

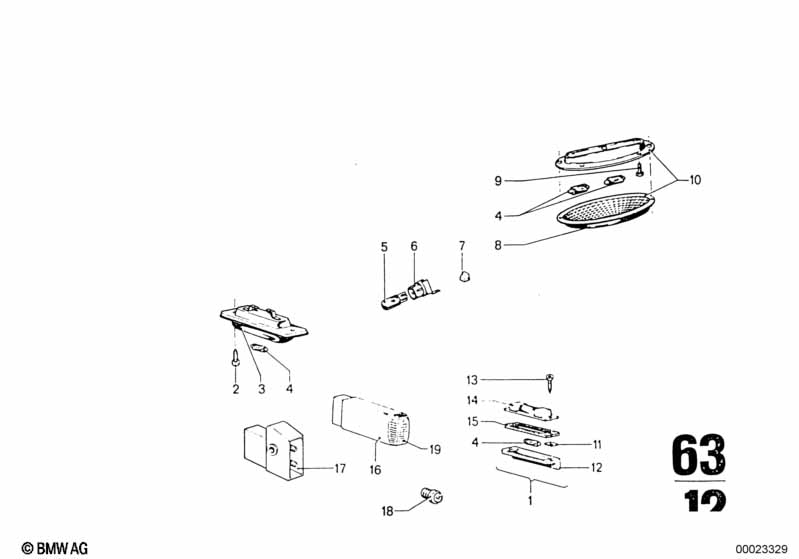

This Various lamps technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2800. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1970.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Registration plate light | 2 | 63261358463 | ENDED | Shop at ECS Tuning | |||||
| 02 | Set fillister head self-tapping screw 20 | ST3,9X19 | 1 | 01/1969 | 07/1976 | 07509063296 | ENDED | Shop at ECS Tuning | ||
| 03 | Lamp | 1 | 63311362711 | $27.29 | ENDED | Shop at ECS Tuning | ||||
| 04 | Bulb | 12V 5W | 5 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 05 | Bulb | W3W | 1 | 07119905358 | $1.96 | Shop at ECS Tuning | ||||
| 06 | Bulb socket | 1 | 61131352728 | ENDED | Shop at ECS Tuning | |||||
| 07 | Prisma | 1 | 63311352069 | ENDED | Shop at ECS Tuning | |||||
| 07 | Prisma | 1 | 08/1968 | 02/1977 | 63311350782 | ENDED | Shop at ECS Tuning | |||
| 08 | Lens | 1 | 63318690150 | ENDED | Shop at ECS Tuning | |||||
| 10 | Interior light | 1 | 63318690100 | $67.56 | ENDED | Shop at ECS Tuning | ||||
| 11 | Body nut | ST3,9-4 | 4 | 07129901640 | ENDED | Shop at ECS Tuning | ||||
| 12 | Lens | 2 | 63261350840 | $20.31 | ENDED | Shop at ECS Tuning | ||||
| 12 | Lens | 2 | 63261358459 | ENDED | Shop at ECS Tuning | |||||
| 13 | Set fillister head self-tapping screw 20 | ST3,9X19 | 4 | 07509063296 | ENDED | Shop at ECS Tuning | ||||
| 14 | Housing | 2 | 63261350839 | ENDED | Shop at ECS Tuning | |||||
| 14 | Housing | 2 | 63261358461 | ENDED | Shop at ECS Tuning | |||||
| 15 | Gasket | 2 | 63261350842 | $12.83 | ENDED | Shop at ECS Tuning | ||||
| 15 | Gasket | 2 | 63261358460 | ENDED | Shop at ECS Tuning | |||||
| 16 | Chargeable hand lamp | 10 ST. | 1 | 08/1968 | 02/1977 | 82119413147 | $27.25 | ENDED, +core | Shop at ECS Tuning | |
| 17 | Plug terminal for hand lamp | 1 | 08/1968 | 02/1977 | 61131355486 | $1.05 | ENDED | Shop at ECS Tuning | ||
| 18 | Bulb | 0,18A | 1 | 08/1968 | 02/1977 | 63171360377 | $5.14 | ENDED | Shop at ECS Tuning | |
| 19 | Lens | 1 | 82119413148 | $2.54 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
