Engine compartment light for BMW 2500-3.3Li 2500 (1971)

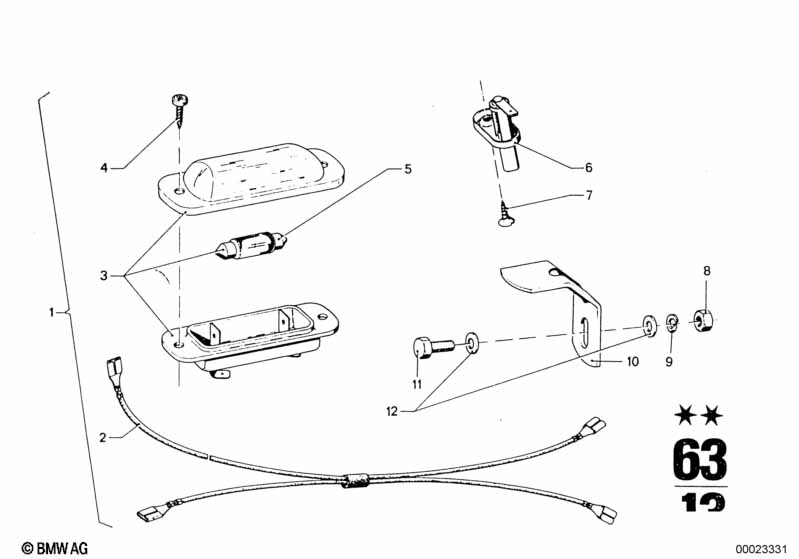

This Engine compartment light technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 2500. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Wiring engine room lamp | 1 | 08/1968 | 02/1977 | 61121351159 | ENDED | Shop at ECS Tuning | |||
| 03 | Lamp | 1 | 63311362709 | $17.86 | ENDED | Shop at ECS Tuning | ||||
| 03 | Lamp | 1 | 63311362711 | $27.29 | ENDED | Shop at ECS Tuning | ||||
| 04 | Fillister head self-tapping screw | ST3,9X13 | 2 | 07119907720 | $2.09 | Shop at ECS Tuning | ||||
| 05 | Bulb | 12V 5W | 1 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
| 06 | Switch | 1 | 61311368430 | $7.86 | Shop at ECS Tuning | |||||
| 08 | Hex nut | M6-8-ZNNIV SI | 1 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Spring washer | B6 | 1 | 07119933082 | $0.09 | Shop at ECS Tuning | ||||
| 10 | Support | 1 | 63311351158 | ENDED | Shop at ECS Tuning | |||||
| 11 | Hex bolt | M6X16-8.8-ZNS3 | 1 | 07119904357 | $0.36 | Shop at ECS Tuning | ||||
| 12 | Washer | A6,4-200HV-ZNS3 | 1 | 07119903791 | $0.11 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 2500-3.3Li 2500 Engine compartment light?
- This technical diagram illustrates the Engine compartment light within the Lighting group for the 2500-3.3Li 2500 produced during 1971. It provides a detailed exploded view of the components, identifying key parts such as the Wiring engine room lamp (Part #61121351159).
- Which models use the hardware listed in this Engine compartment light?
- The hardware and components featured in the Engine compartment light are specific to the 2500-3.3Li 2500 produced during 1971. These technical specifications ensure that parts like the Wiring engine room lamp (61121351159) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Engine compartment light assembly?
- Each item in the Engine compartment light corresponds to the numbered list below the illustration. For the 2500-3.3Li 2500, you can identify the Wiring engine room lamp by locating its position on the schematic, which then links to the official BMW part number 61121351159 for the Lighting section.
