Reflector for BMW 3 Series E46 320Ci (2001)
This Reflector technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Reflector left | 1 | 03/2003 | 63148376873 | $7.42 | Shop at ECS Tuning | ||||

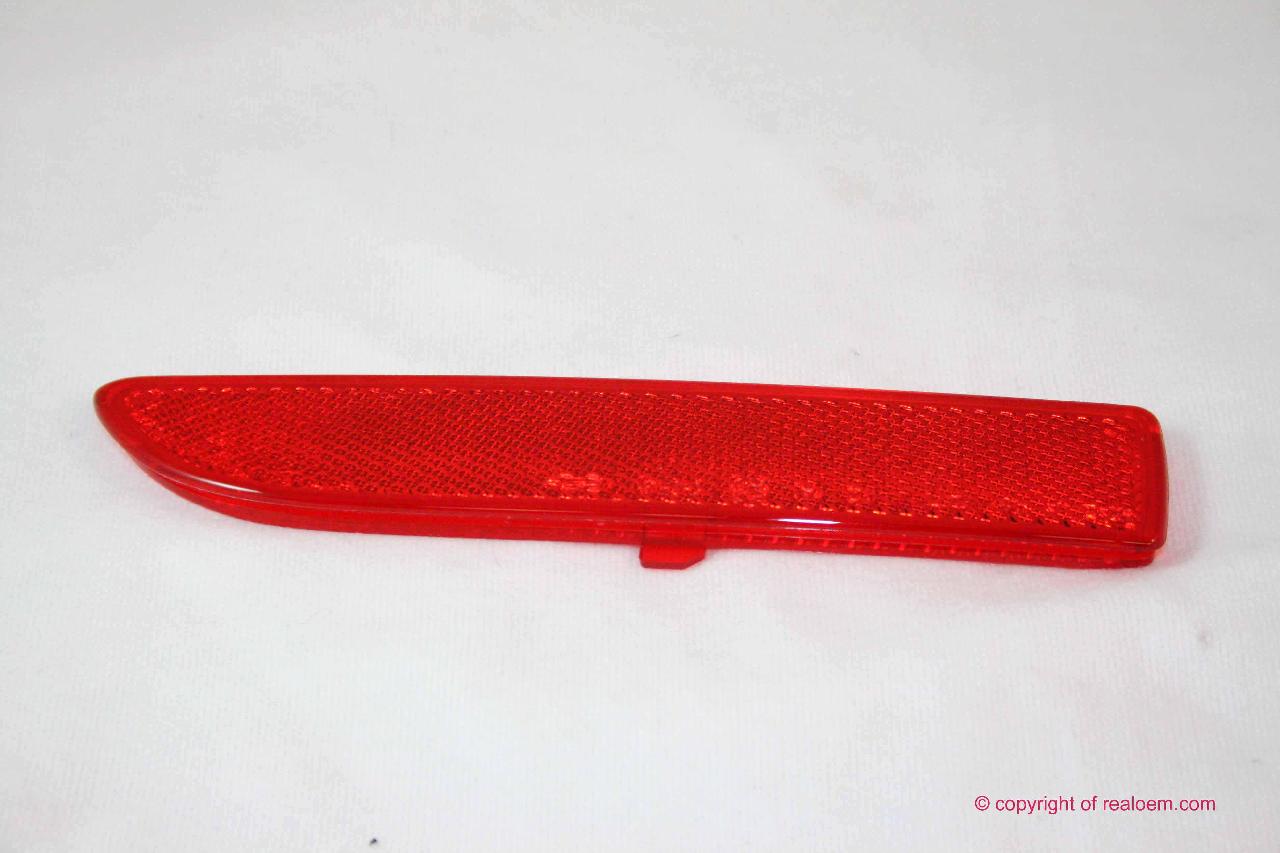

| 02 | Reflector right | 1 | 03/2003 | 63148376874 | $7.42 | ENDED | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 320Ci Reflector?
- This technical diagram illustrates the Reflector within the Lighting group for the 3 Series E46 320Ci produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Reflector left (Part #63148376873).
- Which models use the hardware listed in this Reflector?
- The hardware and components featured in the Reflector are specific to the 3 Series E46 320Ci produced during 2001. These technical specifications ensure that parts like the Reflector left (63148376873) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Reflector assembly?
- Each item in the Reflector corresponds to the numbered list below the illustration. For the 3 Series E46 320Ci, you can identify the Reflector left by locating its position on the schematic, which then links to the official BMW part number 63148376873 for the Lighting section.
