Fog lights for BMW 3 Series E46 330Ci

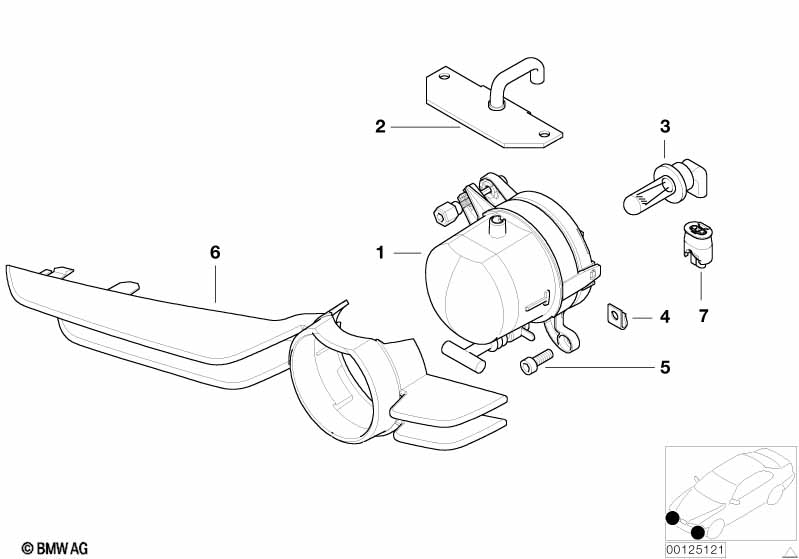

This Fog lights technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fog lights, left | 1 | 03/2003 | 63178371907 | $121.75 | Shop at ECS Tuning | ||||
| 01 | Fog lights, right | 1 | 03/2003 | 63178371908 | $121.75 | Shop at ECS Tuning | ||||
| 02 | Support with grommet, left | 1 | 03/2003 | 63178383009 | $5.50 | Shop at ECS Tuning | ||||
| 02 | Support with grommet, right | 1 | 03/2003 | 63178383010 | $5.50 | Shop at ECS Tuning | ||||
| 03 | Low beam and/or fog lightbulb | HB4 12V 55W | 2 | 03/2003 | 63217160786 | $18.86 | Shop at ECS Tuning | |||
| 04 | Body nut | ST4,2-3-ZNS3 | 4 | 03/2003 | 07129904221 | $0.25 | Shop at ECS Tuning | |||
| 05 | Fillister head self-tapping screw | ST4,2X16-Z2 | 4 | 03/2003 | 07119907948 | $0.18 | Shop at ECS Tuning | |||
| 06 | Grid lateral left | TITAN | 1 | 03/2003 | 51117016515 | $44.00 | Shop at ECS Tuning | |||
| 06 | Grid lateral right | TITAN | 1 | 03/2003 | 51117016516 | $44.00 | Shop at ECS Tuning | |||
| 06 | Grid lateral left | 1 | 03/2003 | 51118204357 | $22.02 | Shop at ECS Tuning | ||||
| 06 | Grid lateral right | 1 | 03/2003 | 51118204358 | $22.02 | Shop at ECS Tuning | ||||
| 07 | Socket housing, grey | 2 POL. | 2 | 03/2003 | 61138364498 | $2.33 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Flat spring contact JPT ELA with cable | 0,5-1,0 MM² AG | 4 | 03/2003 | 61130070584 | Shop at ECS Tuning | ||||
