Rear light in the side panel for BMW 3 Series E46 318Ci (2001)
This Rear light in the side panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear light in the side panel, left | 1 | 03/2003 | 63218364725 | $138.92 | Shop at ECS Tuning | ||||
| 01 | Rear light in the side panel, right | 1 | 03/2003 | 63218364726 | $138.92 | +core | Shop at ECS Tuning | |||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 01 | Rear light in the side panel, white left | 1 | 03/2003 | 63218383825 | $153.53 | +core | Shop at ECS Tuning | |||
| 01 | Rear light in the side panel,white right | 1 | 03/2003 | 63218383826 | $153.53 | +core | Shop at ECS Tuning | |||
| 02 | Tail light gasket | 2 | 63218383898 | $7.09 | Shop at ECS Tuning | |||||
| 03 | Bulb socket, left | 1 | 03/2003 | 63218364729 | $38.32 | +core | Shop at ECS Tuning | |||
| 03 | bulb socket, right | 1 | 03/2003 | 63218364730 | $38.32 | +core | Shop at ECS Tuning | |||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||

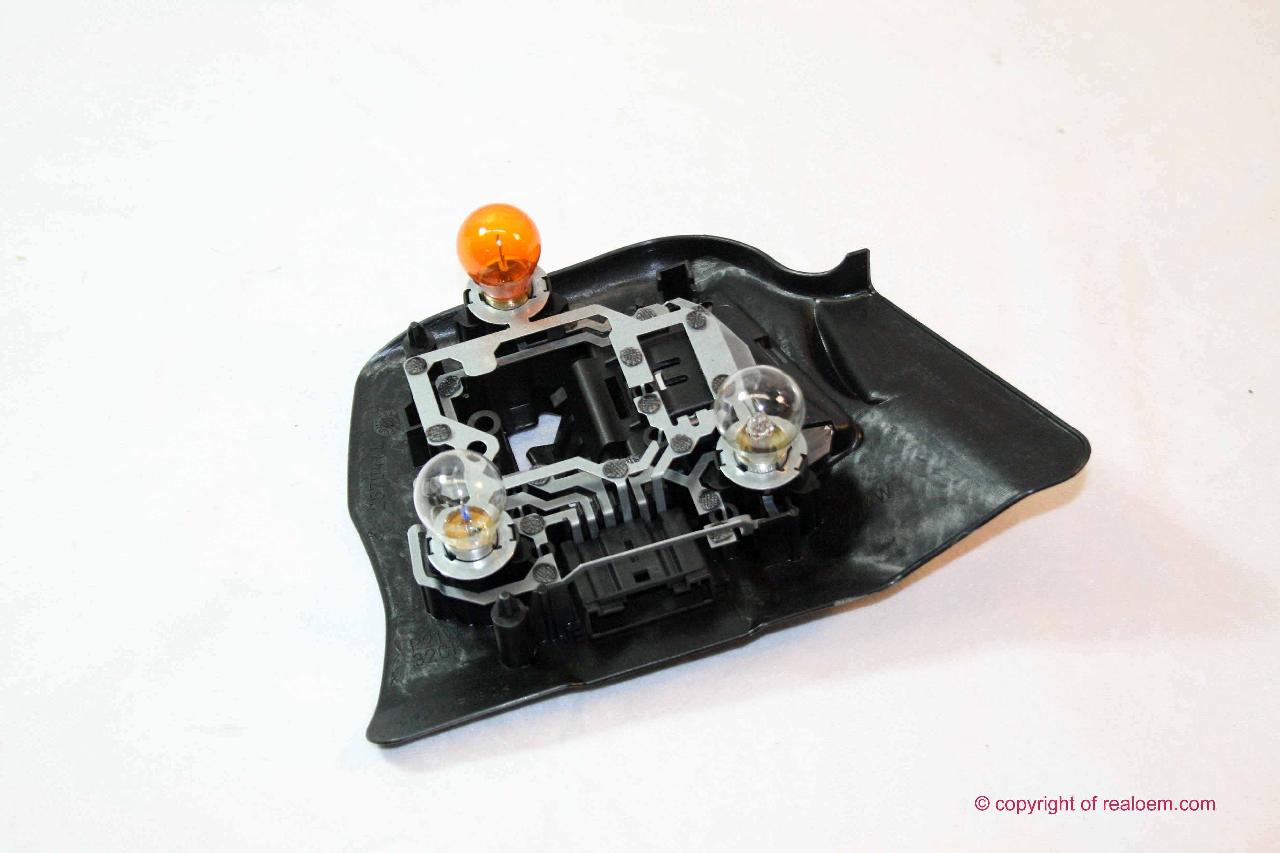

| 03 | Left bulb carrier f white turn indicator | 1 | 03/2003 | 63218383827 | $38.32 | +core | Shop at ECS Tuning | |||
| 03 | Rght bulb carrier f white turn indicator | 1 | 03/2003 | 63218383828 | $38.32 | +core | Shop at ECS Tuning | |||
| ONLY APPLIES TO TAIL LIGHT | ||||||||||
| 04 | Bulb | 12V 21/4W | 2 | 03/2003 | 63217160792 | $3.00 | Shop at ECS Tuning | |||
| 05 | Bulb | P21W/12V/21W | 4 | 03/2003 | 63217160789 | $1.96 | Shop at ECS Tuning | |||
| 05 | Longlife bulb | P21W/12V/21W | 4 | 03/2003 | 63217160790 | $2.38 | Shop at ECS Tuning | |||
| suitable only for turn signals | ||||||||||
| 06 | Bulb | P21W/12V/21W | 2 | 03/2003 | 63217160789 | $1.96 | Shop at ECS Tuning | |||
| 06 | Longlife bulb | P21W/12V/21W | 2 | 03/2003 | 63217160790 | $2.38 | Shop at ECS Tuning | |||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 06 | Bulb yellow | PY21W/12V/21W | 2 | 63217160791 | $5.58 | Shop at ECS Tuning | ||||
| 07 | Hex nut with plate | M6 ZNT | 6 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Protective adhesive film | 40X40MM | 2 | 51718102827 | $0.63 | Shop at ECS Tuning | ||||
| 09 | Covering left | 1 | 63216933017 | $13.50 | Shop at ECS Tuning | |||||
| 09 | Covering right | 1 | 63216933018 | $13.50 | Shop at ECS Tuning | |||||
| 10 | Rubber buffer | D = 11.1 | 2 | 51311925433 | $1.10 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
