Rear light in the side panel for BMW 3 Series E46 320Cd (2006)

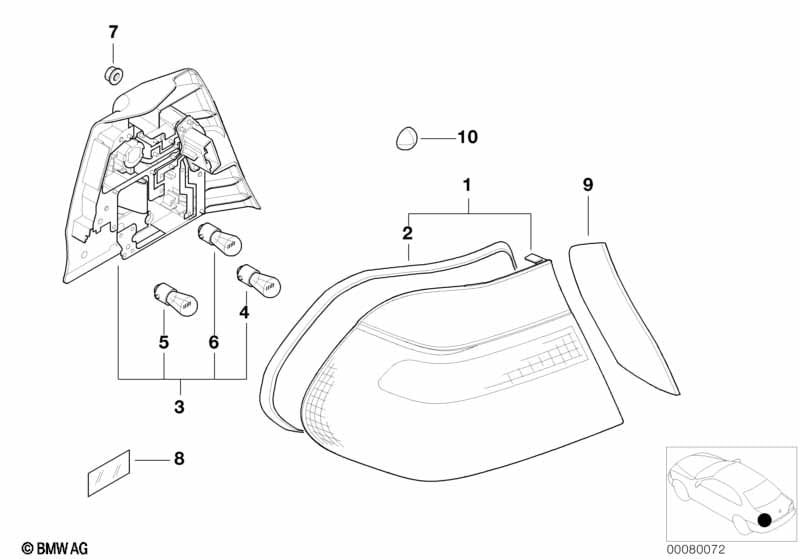

This Rear light in the side panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Cd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Note: When replacing a yellow side panel tail light for a white side panel tail light, the replacement of the white tail light must be performed on both sides. |
||||||||||
| 01 | Tail light "LED" left side panel, white | 1 | 03/2003 | 63216937453 | $199.17 | +core | Shop at ECS Tuning | |||
| 01 | Tail light "LED" right side panel, white | 1 | 03/2003 | 63216937454 | $199.17 | Shop at ECS Tuning | ||||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 01 | Tail light "LED" left side panel, white | 1 | 03/2003 | 63216937453 | $199.17 | +core | Shop at ECS Tuning | |||
| 01 | Tail light "LED" right side panel, white | 1 | 03/2003 | 63216937454 | $199.17 | Shop at ECS Tuning | ||||
| 02 | Tail light gasket | 2 | 63218383898 | $7.09 | Shop at ECS Tuning | |||||
| 03 | Bulb socket, left | LED | 1 | 03/2003 | 63217165973 | $17.55 | Shop at ECS Tuning | |||
| 03 | bulb socket, right | LED | 1 | 03/2003 | 63217165974 | $17.55 | Shop at ECS Tuning | |||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 06 | Bulb yellow | PY21W/12V/21W | 2 | 63217160791 | $5.58 | Shop at ECS Tuning | ||||
| 07 | Hex nut with plate | M6 ZNT | 6 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Protective adhesive film | 40X40MM | 2 | 51718102827 | $0.63 | Shop at ECS Tuning | ||||
| 09 | Covering left | 1 | 63216933019 | $13.50 | Shop at ECS Tuning | |||||
| 09 | Covering right | 1 | 63216933020 | $13.50 | Shop at ECS Tuning | |||||
| 10 | Rubber buffer | D = 11.1 | 2 | 51311925433 | $1.10 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
