Rear light in trunk lid for BMW 3 Series E46 330Ci

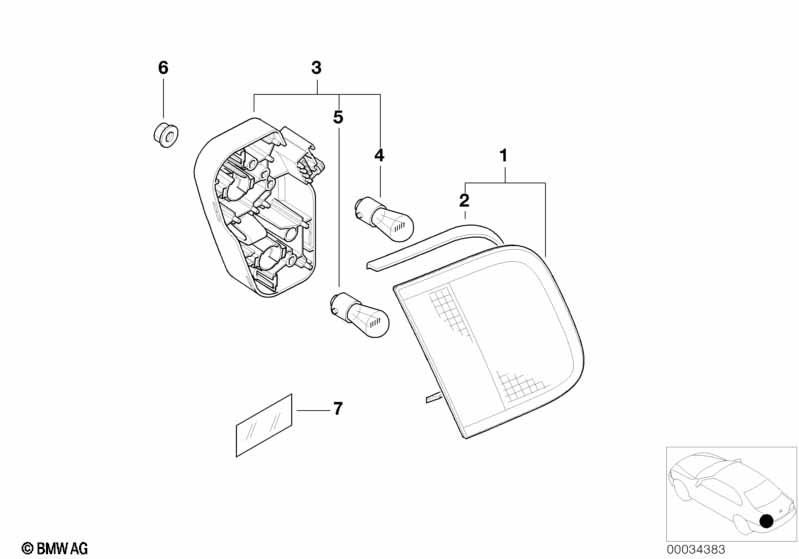

This Rear light in trunk lid technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330Ci. It includes part names, part numbers and all associated mounting hardware.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear light in trunk lid, left | 1 | 03/2003 | 63218364727 | $65.03 | Shop at ECS Tuning | ||||
| 01 | Rear light in trunk lid, left | 1 | 03/2003 | 63216920705 | $65.03 | Shop at ECS Tuning | ||||
| 01 | Rear light in trunk lid, right | 1 | 03/2003 | 63218364728 | $65.03 | +core | Shop at ECS Tuning | |||
| 01 | Rear light in trunk lid, right | 1 | 03/2003 | 63216920706 | $65.03 | Shop at ECS Tuning | ||||
| 02 | Seal, rear light,luggage-compartment lid | 2 | 63218383899 | $3.09 | Shop at ECS Tuning | |||||
| 03 | Bulb socket, left | 1 | 63218374807 | $26.27 | Shop at ECS Tuning | |||||
| 03 | bulb socket, right | 1 | 63218374808 | $26.27 | Shop at ECS Tuning | |||||
| suitable only for reversing light | ||||||||||
| 04 | Bulb | P21W/12V/21W | 2 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 04 | Longlife bulb | P21W/12V/21W | 2 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| For vehicles with Rear fog light |
=Yes |
|||||||||
| 05 | Bulb | P21W/12V/21W | 2 | 63217160789 | $1.96 | Shop at ECS Tuning | ||||
| 05 | Longlife bulb | P21W/12V/21W | 2 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 06 | Hex nut with plate | M6 ZNT | 2 | 07149156628 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Protective adhesive film | 40X40MM | 2 | 51718102827 | $0.63 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
