Front/front lateral turn indicator for BMW 3 Series E46 323Ci (2000)

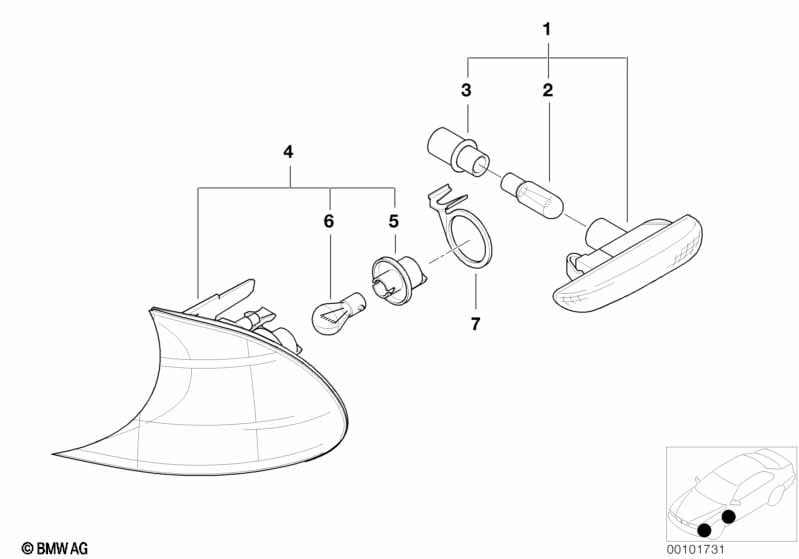

This Front/front lateral turn indicator technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 323Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Additional turn indicator lamp, left | 1 | 03/2003 | 63138370719 | $24.57 | Shop at ECS Tuning | ||||
| 01 | Additional turn indicator lamp, right | 1 | 03/2003 | 63138370720 | $24.57 | Shop at ECS Tuning | ||||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 01 | Addit. turn indicator lamp, left white | 1 | 03/2003 | 63132228591 | $24.57 | Shop at ECS Tuning | ||||
| 01 | Addit. turn indicator lamp, right white | 1 | 03/2003 | 63132228592 | $24.57 | Shop at ECS Tuning | ||||
| 02 | Longlife bulb | 5W | 2 | 63217160797 | $1.96 | Shop at ECS Tuning | ||||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 02 | Bulb yellow | 12V 5W | 2 | 63217160798 | $2.96 | Shop at ECS Tuning | ||||
| 02 | Bulb Polar | 12V 5W BLUE | 2 | 07500030663 | $19.40 | ENDED | Shop at ECS Tuning | |||
| 02 | Conversion kit, bulbs, silver | 1 | 63120420391 | $86.00 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Bulb socket | 2 | 03/2003 | 63138360205 | $7.32 | Shop at ECS Tuning | ||||
| 03 | Bulb socket | 2 | 63138360205 | $7.32 | Shop at ECS Tuning | |||||
| 04 | Front left turn indicator | 1 | 09/2001 | 63126904299 | $32.57 | Shop at ECS Tuning | ||||
| 04 | Front right turn indicator | 1 | 09/2001 | 63126904300 | $32.57 | Shop at ECS Tuning | ||||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 04 | Front left white turn indicator | 1 | 09/2001 | 63126904307 | $49.60 | Shop at ECS Tuning | ||||
| 04 | Front right white turn indicator | 1 | 09/2001 | 63126904308 | $49.60 | Shop at ECS Tuning | ||||
| 05 | Bulb socket | 2 | 03/2003 | 63138380211 | $10.25 | Shop at ECS Tuning | ||||
| 05 | Bulb socket, yellow bulb | 2 | 63136904823 | $16.18 | Shop at ECS Tuning | |||||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 05 | Bulb socket, yellow bulb | 2 | 03/2003 | 63136904823 | $16.18 | Shop at ECS Tuning | ||||
| 06 | Bulb | P21W/12V/21W | 2 | 09/2001 | 63217160789 | $1.96 | Shop at ECS Tuning | |||
| 06 | Longlife bulb | P21W/12V/21W | 2 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 06 | Bulb yellow | PY21W/12V/21W | 2 | 63217160791 | $5.58 | Shop at ECS Tuning | ||||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 06 | Bulb yellow | PY21W/12V/21W | 2 | 63217160791 | $5.58 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
