Various lamps for BMW 3 Series E46 320Ci (2006)

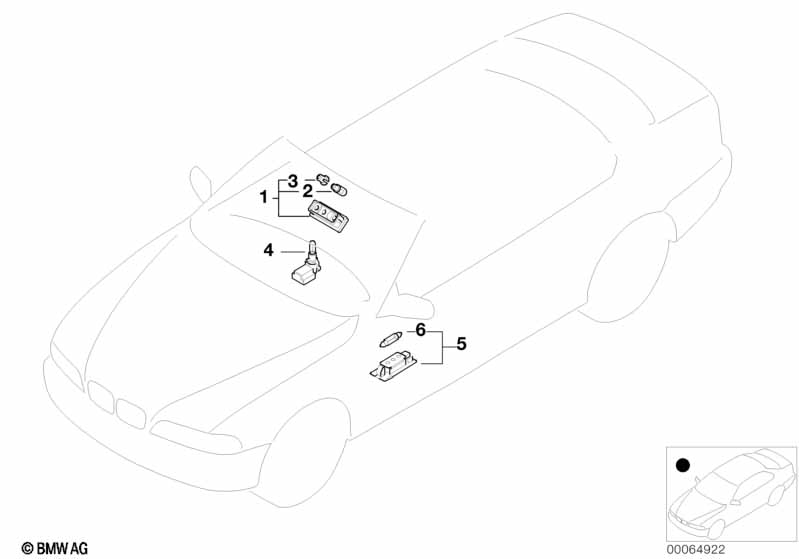

This Various lamps technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Interior reading light front | 1 | 63316962046 | $114.58 | Shop at ECS Tuning | |||||
| 02 | Bulb | 12V 6W XENON | 3 | 63217160908 | $7.94 | Shop at ECS Tuning | ||||
| 03 | Bulb socket | 3 | 63258389736 | $2.42 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO ASHTRAY |
||||||||||
| 04 | Bulb socket with bulb | 1 | 61138364637 | $7.58 | Shop at ECS Tuning | |||||
| ONLY APPLIES TO FLOOR SILL LAMP |
||||||||||
| 05 | Interior light | 2 | 63316962040 | $10.07 | Shop at ECS Tuning | |||||
| 06 | Bulb | 12V 5W | 2 | 63217160805 | $1.58 | Shop at ECS Tuning | ||||
