Fog lights for BMW 5 Series E39 540iP (2000)

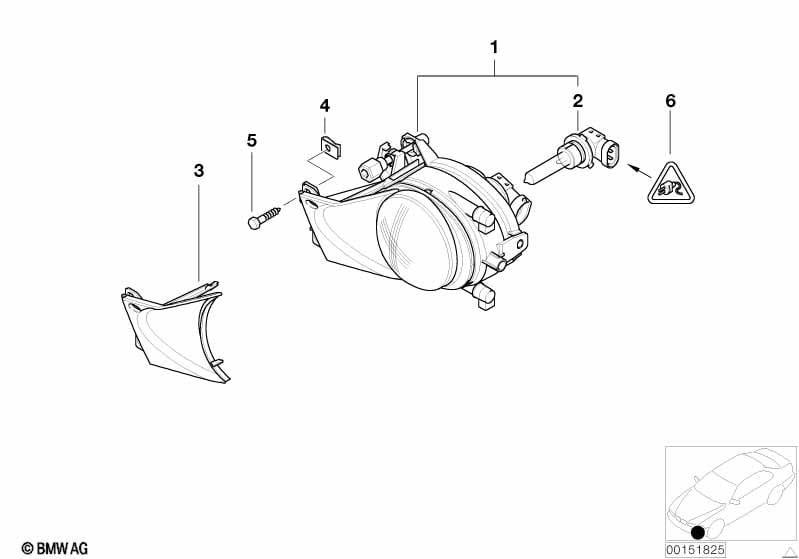

This Fog lights technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 540iP. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2000.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fog lights, left | 1 | 09/2000 | 63176900221 | $121.75 | Shop at ECS Tuning | ||||
| 01 | Fog lights, right | 1 | 09/2000 | 63176900222 | $121.75 | Shop at ECS Tuning | ||||
| 02 | Bulb | H8 12V 35W | 2 | 09/2000 | 07119906503 | Shop at ECS Tuning | ||||
| 03 | Cover, fog lamp, left | 1 | 09/2000 | 63176906427 | $17.00 | Shop at ECS Tuning | ||||
| 03 | Cover, fog lamp, right | 1 | 09/2000 | 63176906428 | $17.00 | Shop at ECS Tuning | ||||
| 04 | Body nut | ST4,2-3-ZNS3 | 4 | 09/2000 | 07129904221 | $0.25 | Shop at ECS Tuning | |||
| 05 | Hex head screw | ST4,2X16 | 4 | 09/2000 | 07119900753 | $0.24 | Shop at ECS Tuning | |||
| 06 | Socket housing, black | 2 POL. | 2 | 09/2000 | 61136907388 | $1.82 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Flat spring contact JPT ELA with cable | 0,5-1,0 MM² AG | 2 | 09/2000 | 61130070584 | Shop at ECS Tuning | ||||
| 06 | Rep. kit for socket housing | 2 POL. | 2 | 09/2000 | 61132360041 | Shop at ECS Tuning | ||||
