Fog lights for BMW 7 Series E66 745Li (2005)

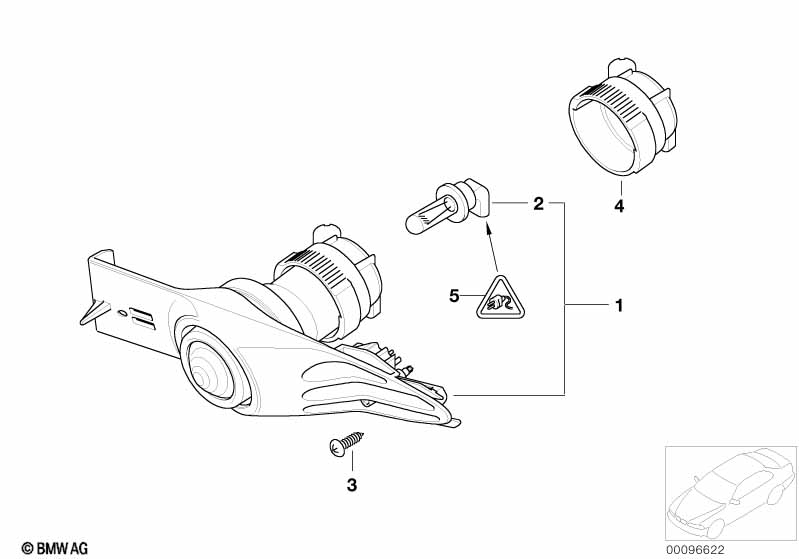

This Fog lights technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 745Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fog lights, left | 1 | 03/2005 | 63178379683 | $132.92 | Shop at ECS Tuning | ||||
| 01 | Fog lights, right | 1 | 03/2005 | 63178379684 | $132.92 | ENDED | Shop at ECS Tuning | |||
| 02 | Bulb | 12V 55W H3 | 2 | 03/2005 | 63217160779 | $21.84 | Shop at ECS Tuning | |||
| 03 | Fillister head self-tapping screw | ST4,8X13MM | 4 | 03/2005 | 07146982378 | $0.25 | Shop at ECS Tuning | |||
| 04 | Covering cap, fog lamp | 2 | 03/2005 | 63176918125 | $11.20 | Shop at ECS Tuning | ||||
| 05 | Universal socket housing uncoded | 2 POL. | 2 | 03/2005 | 61138352390 | $19.65 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Snap-in receptacle 2.5 ELA with cable | 0,75-1,0 MM² | 2 | 03/2005 | 61130007569 | $2.27 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
