Rear light in the side panel for BMW 7 Series E65 730i (2005)

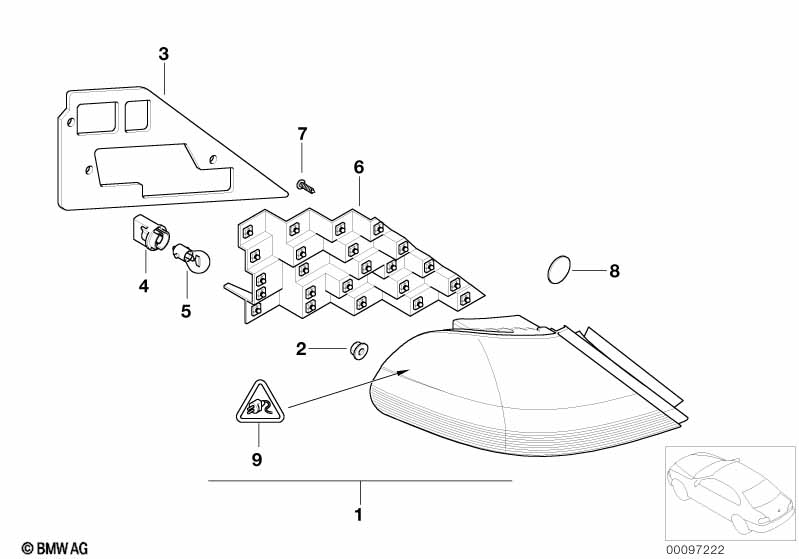

This Rear light in the side panel technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Rear light in the side panel, left | 1 | 03/2005 | 63217164733 | Shop at ECS Tuning | |||||
| 01 | Rear light in the side panel, right | 1 | 03/2005 | 63217164734 | Shop at ECS Tuning | |||||
| 01 | Rear light in the side panel, white left | 1 | 03/2005 | 63217164735 | $261.47 | ENDED | Shop at ECS Tuning | |||
| 01 | Rear light in the side panel,white right | 1 | 03/2005 | 63217164736 | Shop at ECS Tuning | |||||
| 02 | Hex nut with plate | M5 | 1 | 03/2005 | 63259128043 | $0.72 | Shop at ECS Tuning | |||
| 03 | Seal, rear light, side panel left | 1 | 03/2005 | 63316917091 | $7.46 | Shop at ECS Tuning | ||||
| 03 | Seal, rear light, side panel right | 1 | 03/2005 | 63316917092 | $7.46 | Shop at ECS Tuning | ||||
| 04 | Bulb socket | 2 | 03/2005 | 63211379399 | $9.05 | Shop at ECS Tuning | ||||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 04 | Lamp socket bulb yellow / silver | 2 | 03/2005 | 63216903651 | $9.40 | Shop at ECS Tuning | ||||
| 05 | Bulb | P21W/12V/21W | 2 | 03/2005 | 63217160789 | $1.96 | Shop at ECS Tuning | |||
| 05 | Longlife bulb | P21W/12V/21W | 2 | 03/2005 | 63217160790 | $2.38 | Shop at ECS Tuning | |||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 05 | Bulb yellow | PY21W/12V/21W | 2 | 03/2005 | 63217160791 | $5.58 | Shop at ECS Tuning | |||
| 06 | Tail light PC-board, side panel, left | 1 | 03/2005 | 63216917089 | $164.98 | Shop at ECS Tuning | ||||
| 06 | Tail light PC-board, side panel, right | 1 | 03/2005 | 63216917090 | $164.98 | Shop at ECS Tuning | ||||
| 08 | Damper rubber | 2 | 03/2005 | 63216919170 | $0.42 | ENDED | Shop at ECS Tuning | |||
| 09 | Universal socket housing uncoded | 6 POL. | 2 | 03/2005 | 61136909058 | $1.15 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS with cable | 0,2- 0,5 QMM | X | 03/2005 | 61130005197 | $1.65 | Shop at ECS Tuning | |||
| -- | Contact bushing MQS with cable | 0,5-0,75 MM² AG | X | 03/2005 | 61130056960 | Shop at ECS Tuning | ||||
| 09 | Rep. kit for socket housing | 6 POL. | 2 | 03/2005 | 61132359992 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
