Single parts, xenon headlight for BMW 3 Series E46 M3 (2004)

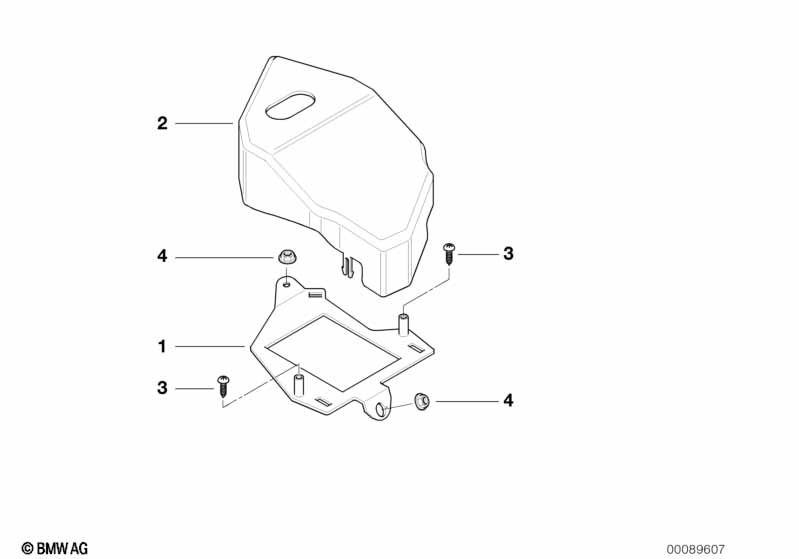

This Single parts, xenon headlight technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 M3. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket,control unit, Xenon light left | 1 | 61127893034 | $13.87 | Shop at ECS Tuning | |||||
| 02 | Cover, xenon headlight control unit | 1 | 09/2001 | 63127832829 | $8.25 | Shop at ECS Tuning | ||||
| 03 | Fillister head screw | 2 | 12/2021 | 07147195855 | Shop at ECS Tuning | |||||
| 03 | Fillister head screw | 2 | 72128244154 | $0.34 | Shop at ECS Tuning | |||||
| 04 | Self-locking hex nut | M6 | 2 | 64509123157 | $0.70 | Shop at ECS Tuning |
