Headlight, electronic parts, Xenon light for BMW 3 Series E46 318ti (2004)

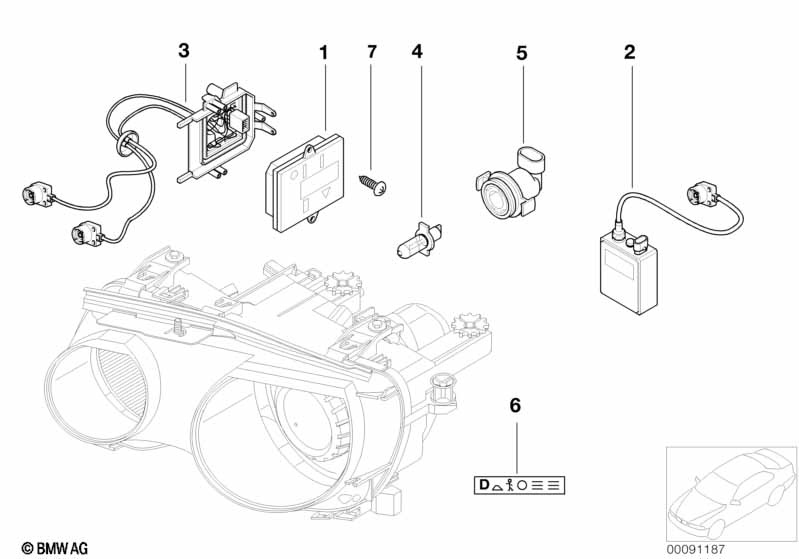

This Headlight, electronic parts, Xenon light technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 318ti. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Control unit xenon light | AL | 2 | 63127176068 | $449.90 | Shop at ECS Tuning | ||||
| 02 | Ignition element Xenon-light | AL | 2 | 08/2001 | 63126907504 | $114.15 | Shop at ECS Tuning | |||
| 03 | Bracket,control unit, Xenon light left | 1 | 63126920165 | $52.73 | Shop at ECS Tuning | |||||
| 03 | Bracket,control unit, Xenon light right | 1 | 63126920166 | $60.47 | Shop at ECS Tuning | |||||
| 04 | Bulb Xenon light | PHILIPS D2-S | 2 | 07119904790 | $129.62 | Shop at ECS Tuning | ||||
| Not suitable for ZKW | ||||||||||
| 04 | Bulb Xenon light | D2-S 35W | 2 | 63217160806 | $212.43 | Shop at ECS Tuning | ||||
| 05 | Supporting ring f Xenon light bulb | 2 | 63126905323 | $11.23 | Shop at ECS Tuning | |||||
| 06 | Stick-on label xenon-light | 2 | 71237248266 | Shop at ECS Tuning | ||||||
