Fog lights for BMW 3 Series E46 330d (2004)

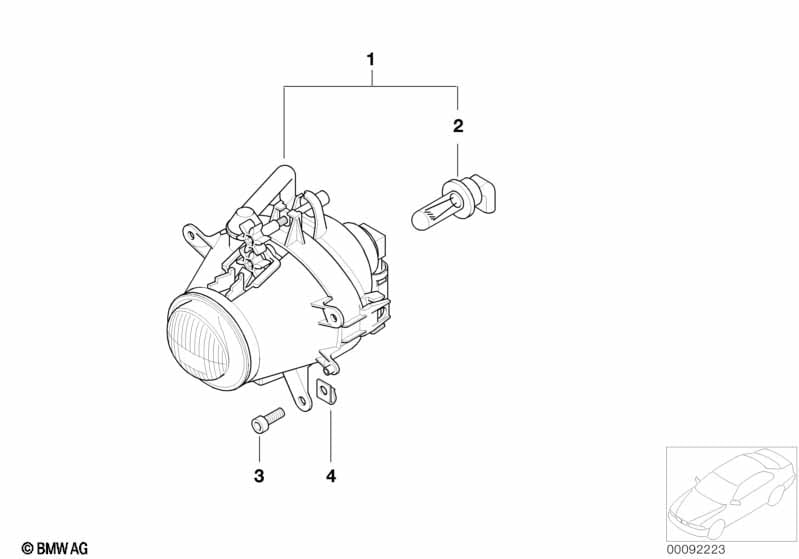

This Fog lights technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Fog lights | 2 | 09/2001 | 63176911007 | $121.75 | Shop at ECS Tuning | ||||
| 02 | Longlife bulb | H11 55W | 2 | 09/2001 | 63217160784 | $53.74 | Shop at ECS Tuning | |||
| 03 | Hex head screw with washer | ST4,8X 9-C-Z2 | 4 | 09/2001 | 07119902267 | $0.27 | Shop at ECS Tuning | |||
| 04 | Body nut | ST4,8-9-ZNS3 | 4 | 09/2001 | 07129904150 | $0.25 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 330d Fog lights?
- This technical diagram illustrates the Fog lights within the Lighting group for the 3 Series E46 330d produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Fog lights (Part #63176911007).
- Which models use the hardware listed in this Fog lights?
- The hardware and components featured in the Fog lights are specific to the 3 Series E46 330d produced during 2004. These technical specifications ensure that parts like the Fog lights (63176911007) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Fog lights assembly?
- Each item in the Fog lights corresponds to the numbered list below the illustration. For the 3 Series E46 330d, you can identify the Fog lights by locating its position on the schematic, which then links to the official BMW part number 63176911007 for the Lighting section.
