turn signals front/side for BMW 3 Series E46 330d (2004)

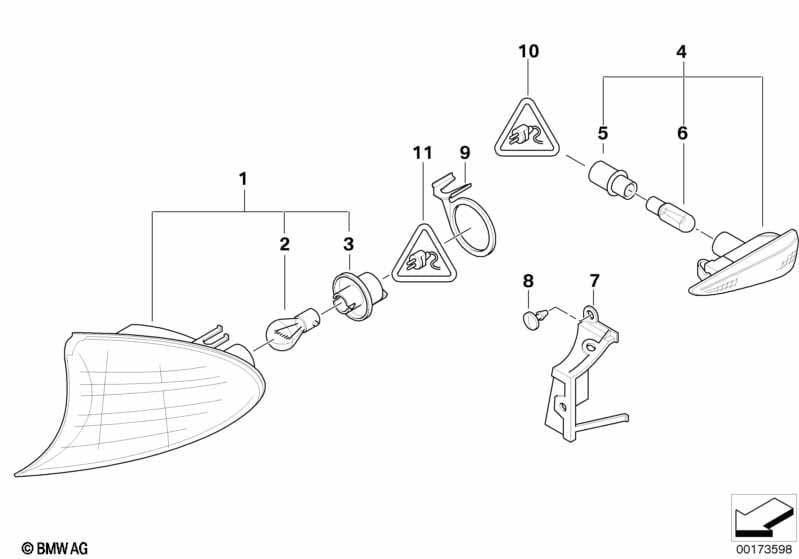

This turn signals front/side technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left direction indicator light, titanium | 1 | 09/2001 | 63137165851 | +core | Shop at ECS Tuning | ||||
| 01 | Right direct. indicator light, titanium | 1 | 09/2001 | 63137165852 | +core | Shop at ECS Tuning | ||||
| 01 | Left direct. indic. light,white/titanium | 1 | 09/2001 | 63137165853 | +core | Shop at ECS Tuning | ||||
| 01 | Right direct.indic. light,white/titanium | 1 | 09/2001 | 63137165854 | Shop at ECS Tuning | |||||
| For vehicles with White direction indicator lights |
S785A=No |
|||||||||
| 01 | Left direction indicator light, yellow | 1 | 09/2001 | 63137165847 | Shop at ECS Tuning | |||||
| 01 | Right direction indicator light, yellow | 1 | 09/2001 | 63137165848 | Shop at ECS Tuning | |||||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 01 | Left direction indicator light, white | 1 | 09/2001 | 63137165849 | Shop at ECS Tuning | |||||
| 01 | Right direction indicator light, white | 1 | 09/2001 | 63137165850 | Shop at ECS Tuning | |||||
| 02 | Longlife bulb | P21W/12V/21W | 2 | 09/2001 | 63217160790 | $2.38 | Shop at ECS Tuning | |||
| 02 | Bulb yellow | PY21W/12V/21W | 2 | 09/2001 | 63217160791 | $5.58 | Shop at ECS Tuning | |||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 02 | Bulb silver | 12V 21W | 2 | 09/2001 | 63217160897 | $19.40 | Shop at ECS Tuning | |||
| 02 | Conversion kit, bulbs, silver | 2 | 09/2001 | 63120420391 | $86.00 | ENDED, +core | Shop at ECS Tuning | |||

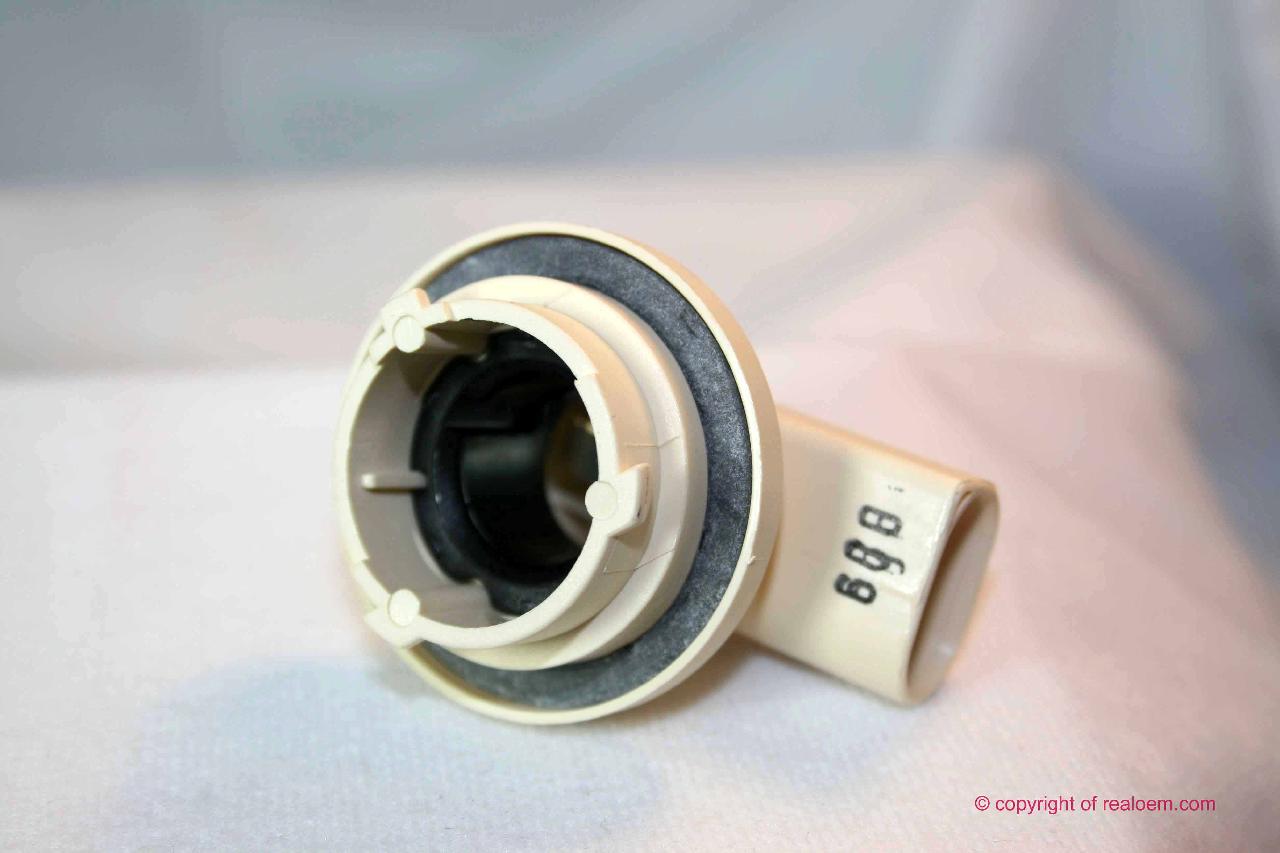

| 03 | Left turn indicat.lamp bulb socket | 1 | 09/2001 | 63136943121 | $13.37 | Shop at ECS Tuning | ||||

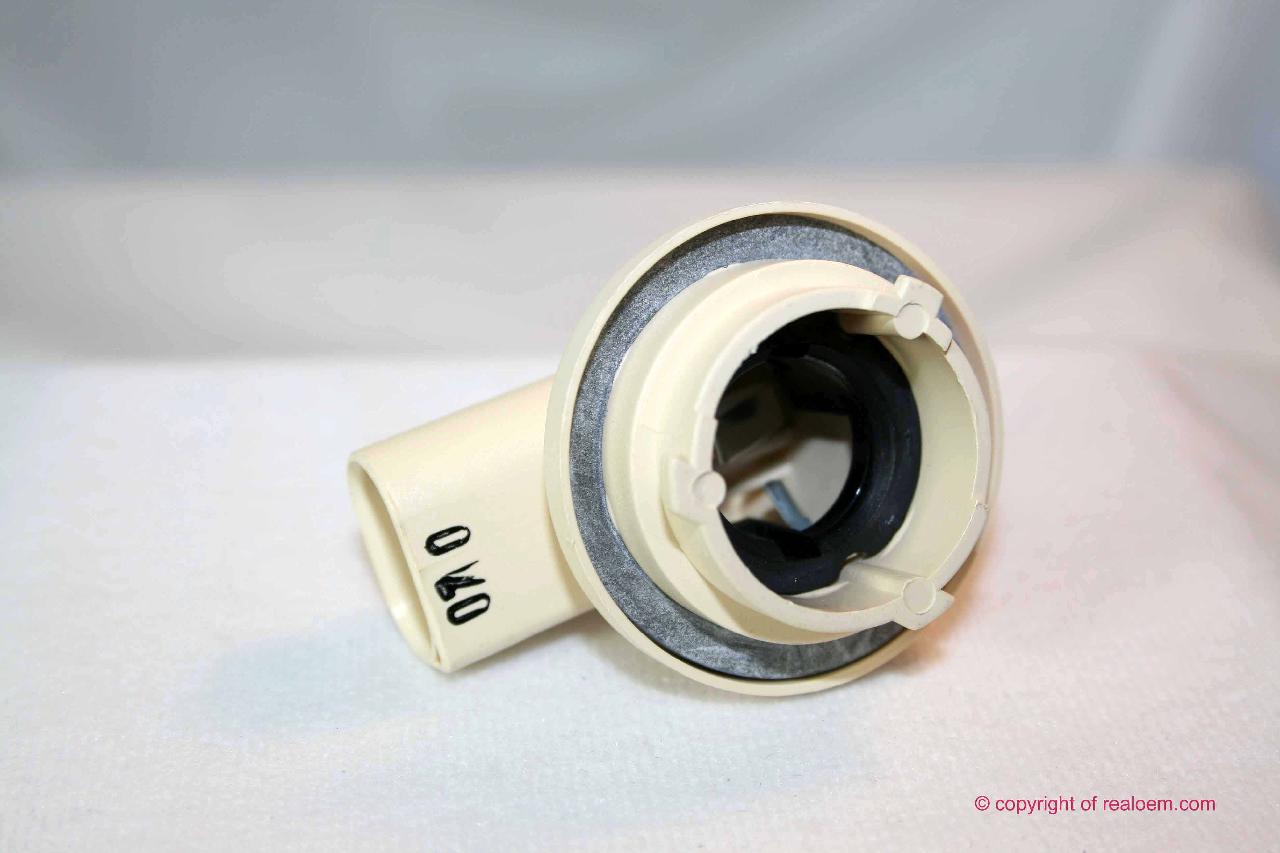

| 03 | Right turn indicat.lamp bulb socket | 1 | 09/2001 | 63136943122 | $13.37 | Shop at ECS Tuning | ||||
| only applies to left turn indicator | ||||||||||
| 03 | Bulb socket,turn indicator,yellow | 1 | 09/2001 | 63136914121 | $13.68 | Shop at ECS Tuning | ||||
| only applies to right turn indicator | ||||||||||
| 03 | Bulb socket,turn indicator,yellow | 1 | 09/2001 | 63136914122 | $13.68 | Shop at ECS Tuning | ||||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 03 | Bulb socket, turn indicator, white left | 1 | 09/2001 | 63136914167 | $13.68 | Shop at ECS Tuning | ||||
| 03 | Bulb socket, turn indicator, white right | 1 | 09/2001 | 63136914168 | $13.68 | Shop at ECS Tuning | ||||

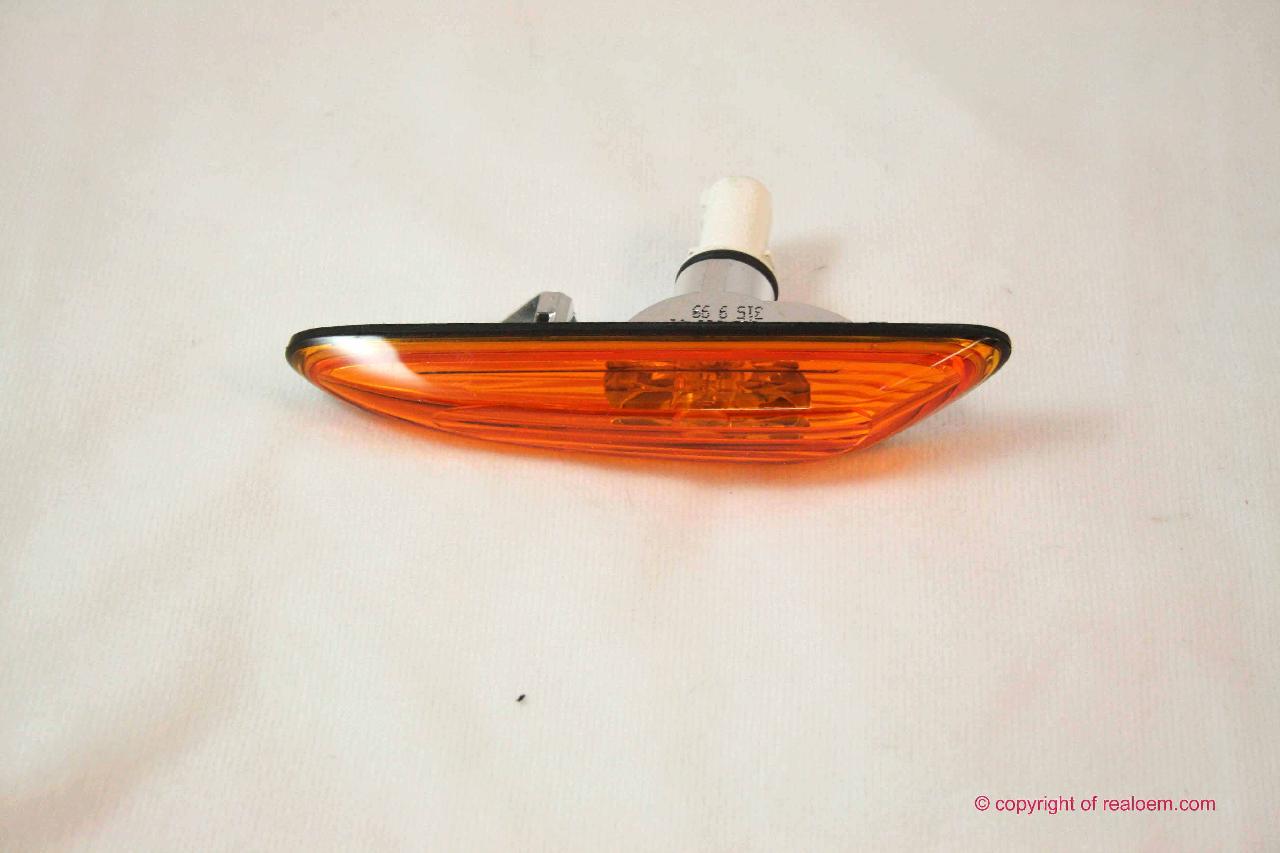

| 04 | Auxiliary flasher, yellow, left | TITAN | 1 | 09/2001 | 63137165913 | $24.57 | Shop at ECS Tuning | |||
| 04 | Auxiliary flasher, yellow, right | TITAN | 1 | 09/2001 | 63137165914 | $24.57 | Shop at ECS Tuning | |||
| 04 | Addit. turn indicator lamp, left white | 1 | 09/2001 | 63137165915 | $24.57 | Shop at ECS Tuning | ||||
| 04 | Addit. turn indicator lamp, right white | 1 | 09/2001 | 63137165916 | $24.57 | Shop at ECS Tuning | ||||
| 05 | Bulb socket | 2 | 09/2001 | 63138382104 | $9.05 | Shop at ECS Tuning | ||||
| 06 | Longlife bulb | 5W | 2 | 09/2001 | 63217160797 | $1.96 | Shop at ECS Tuning | |||
| 06 | Bulb yellow | 12V 5W | 2 | 09/2001 | 63217160798 | $2.96 | Shop at ECS Tuning | |||
| 07 | Bracket, left direction indicator light | 1 | 09/2001 | 63136914763 | $5.83 | Shop at ECS Tuning | ||||
| 07 | Bracket, right direction indicator light | 1 | 09/2001 | 63136914764 | $5.83 | Shop at ECS Tuning | ||||
| 08 | Blind rivet | 4 | 09/2001 | 63137055874 | $0.42 | Shop at ECS Tuning | ||||

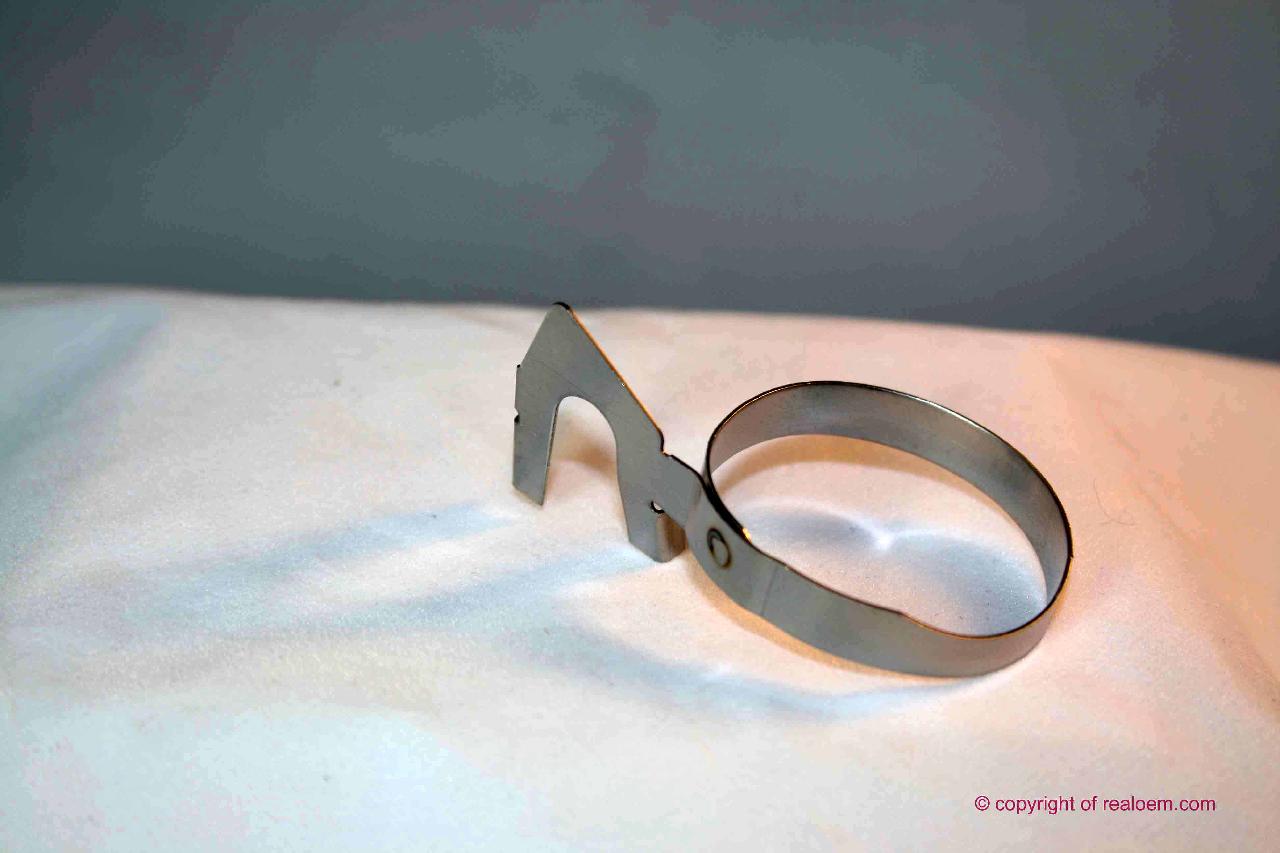

| 09 | Bracket, left direction indicator light | 1 | 09/2001 | 63136938621 | $12.02 | Shop at ECS Tuning | ||||
| 09 | Bracket, right direction indicator light | 1 | 09/2001 | 63136938622 | $12.02 | Shop at ECS Tuning | ||||
| 10 | Universal socket housing uncoded | 2 POL. | 2 | 09/2001 | 61138795954 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | X | 09/2001 | 61130056384 | Shop at ECS Tuning | ||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | X | 09/2001 | 61130056961 | Shop at ECS Tuning | ||||
| 10 | Rep. kit for socket housing | 2 POL. | 2 | 09/2001 | 61132359999 | Shop at ECS Tuning | ||||
| 11 | Universal socket housing uncoded | 2 POL. | 2 | 09/2001 | 61138373332 | $2.70 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Cont.bush.ELO-power sg.cond.seal w/cable | 0,2- 0,5 MM² SN | X | 09/2001 | 61130070581 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,0- 2,5 MM² SN | X | 09/2001 | 61138364838 | $0.62 | Shop at ECS Tuning | |||
| -- | Single conductor seal | 1,5-2,5MM ² | X | 09/2001 | 61138372626 | $0.47 | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
