Headlight for BMW 5 Series E60 530xi (2007)

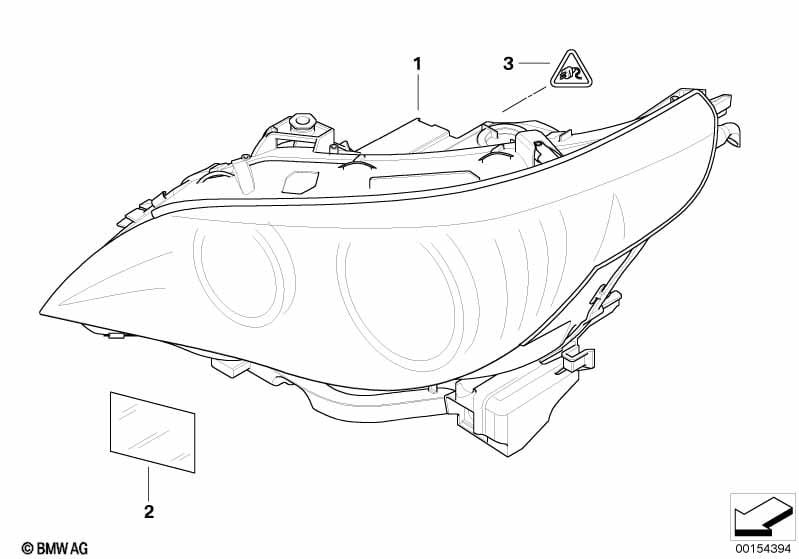

This Headlight technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Headlight does not include electronic componentry or xenon bulb |
|||||||||
| For vehicles with Xenon Light |
S522A=Yes |
|||||||||
| 01 | Bi-xenon headlight, left | 1 | 01/2005 | 03/2007 | 63127160193 | ENDED | Shop at ECS Tuning | |||
| 01 | Bi-xenon headlight, right | 1 | 01/2005 | 03/2007 | 63127160194 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Xenon Light and Adaptive Headlights |
S522A=No S524A=No |
|||||||||
| 01 | Headlight left | 1 | 03/2007 | 63127165561 | Shop at ECS Tuning | |||||
| 01 | Headlight right | 1 | 03/2007 | 63127165562 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Xenon Light and Adaptive Headlights |
S522A=Yes S524A=Yes |
|||||||||
| 01 | Bi-xenon headlight AKL, left | 1 | 01/2005 | 03/2007 | 63127160149 | ENDED | Shop at ECS Tuning | |||
| 01 | Bi-xenon headlight AKL, right | 1 | 01/2005 | 03/2007 | 63127160150 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Xenon Light and Adaptive Headlights |
S522A=No S524A=No |
|||||||||
| 02 | Set masking foil f headlight | 1 | 63120032072 | +core | Shop at ECS Tuning | |||||
| 03 | Universal socket housing uncoded | 8 POL. | 2 | 61138352576 | $8.00 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 8 | 61130056384 | Shop at ECS Tuning | |||||
| 03 | Universal socket housing uncoded | 4 POL. | 2 | 61138365356 | $3.10 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Contact bushing MQS ELA with cable | 0,5-0,75 MM² AG | 4 | 61130056384 | Shop at ECS Tuning | |||||
| -- | Contact bushing MQS ELA with cable | 0,35-0,5 MM² AG | 4 | 61130056961 | Shop at ECS Tuning | |||||
