Headlight, electronic parts, Xenon light for BMW 5 Series E60 550i (2007)

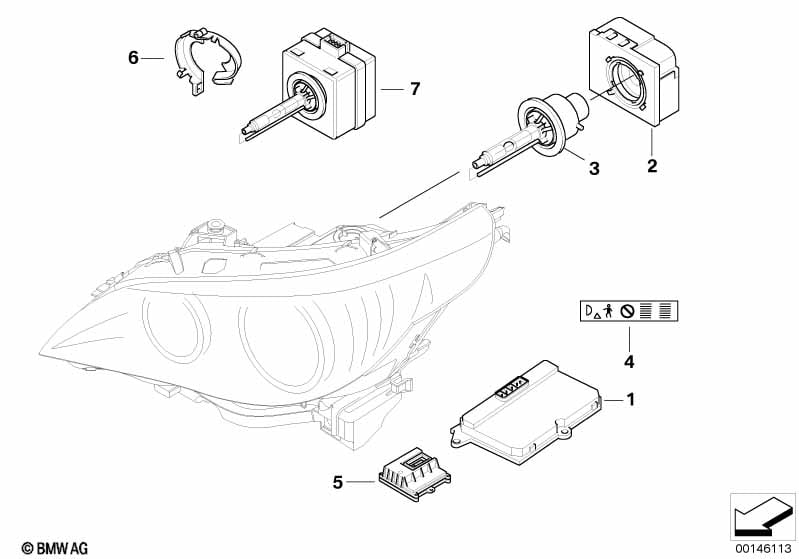

This Headlight, electronic parts, Xenon light technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 550i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Xenon Light or Adaptive Headlights |
S522A=Yes S524A=Yes |
||||||||
| 01 | Control unit xenon light | 2 | 63126937223 | $413.73 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Bulb Xenon light with ignition element | D1S | X | 63217160807 | $199.69 | ENDED | Shop at ECS Tuning | |||
| 04 | Stick-on label xenon-light | 2 | 71237248266 | Shop at ECS Tuning | ||||||
| For vehicles with National version China |
L8AAA=Yes |
|||||||||
| 04 | Stick-on label xenon-light | 2 | 71237248266 | Shop at ECS Tuning | ||||||
| For vehicles with Adaptive Headlights |
S524A=Yes |
|||||||||
| 05 | Electronics box ALC uncoded | 2 | 63127189312 | $147.35 | Shop at ECS Tuning | |||||
| 06 | Lamp holder for Xenon lamp | 2 | 63117162087 | $7.17 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Bulb Xenon light with ignition element | D1S | X | 63217160807 | $199.69 | ENDED | Shop at ECS Tuning | |||
| -- | Bulb Xenon light with ignition element | D1S | X | 63217162862 | $212.43 | ENDED | Shop at ECS Tuning | |||
| 07 | Bulb Xenon light with ignition element | D1 12V 35W | 2 | 63217217509 | $212.43 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
