Rear light for BMW 5 Series E60 530d (2007)

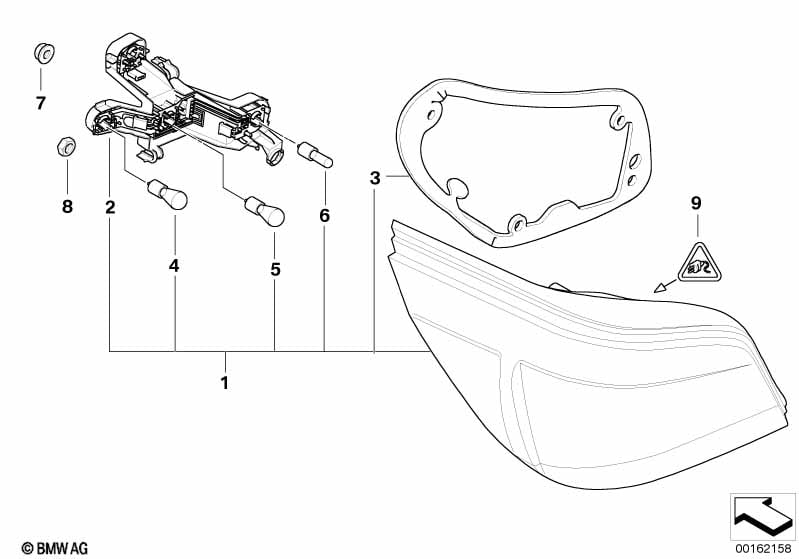

This Rear light technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 530d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Left rear light, white turn indicator | 1 | 63217165737 | Shop at ECS Tuning | ||||||
| 01 | Right rear light, white turn indicator | 1 | 63217165738 | Shop at ECS Tuning | ||||||
| 02 | Left bulb carrier f white turn indicator | 1 | 63216923305 | $36.02 | Shop at ECS Tuning | |||||
| 02 | Rght bulb carrier f white turn indicator | 1 | 63216923306 | $36.02 | Shop at ECS Tuning | |||||
| 03 | Gasket, rear light, left | 1 | 63217207499 | Shop at ECS Tuning | ||||||
| 03 | Gasket, rear light, right | 1 | 63217207500 | Shop at ECS Tuning | ||||||
| 04 | Bulb yellow | PY21W/12V/21W | 2 | 63217160791 | $5.58 | Shop at ECS Tuning | ||||
| 05 | Longlife bulb | P21W/12V/21W | 8 | 63217160790 | $2.38 | Shop at ECS Tuning | ||||
| 06 | Longlife bulb | 12V 16W | 2 | 63217160935 | $6.42 | Shop at ECS Tuning | ||||
| 07 | Hex nut with plate | M5 | 6 | 63259128043 | $0.72 | Shop at ECS Tuning | ||||
| 08 | Hex nut | M5 | 2 | 07129901767 | $0.62 | Shop at ECS Tuning | ||||
| 09 | Universal MPQ socket housing uncoded | 6 POL. | 2 | 61136984758 | $3.12 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Socket contact ELO-Power 2,8x0,63 | 0,5-1,0 MM² | X | 61138364832 | $0.35 | Shop at ECS Tuning | ||||
| -- | Socket contact ELO-Power 2,8x0,63 | 1,5-2,5 MM² SN | X | 61138364834 | $0.35 | Shop at ECS Tuning | ||||
