Single components for headlight for BMW 3 Series E46 320Ci (2006)

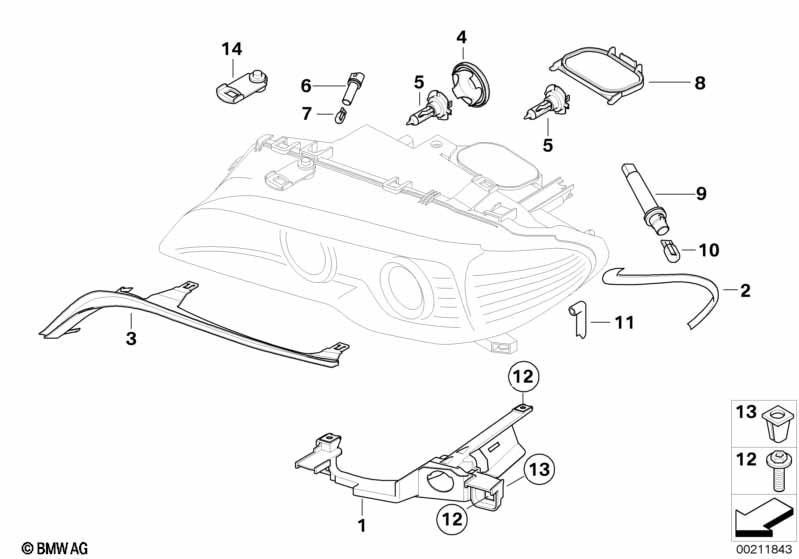

This Single components for headlight technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 320Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2006.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bracket headlight left | 1 | 03/2003 | 63126934747 | $52.65 | Shop at ECS Tuning | ||||
| 01 | Bracket headlight right | 1 | 03/2003 | 63126934748 | $52.65 | Shop at ECS Tuning | ||||
| 02 | Gasket for turn indicator, left | 1 | 03/2003 | 63126934749 | $5.50 | +core | Shop at ECS Tuning | |||
| 02 | Gasket for turn indicator, right | 1 | 03/2003 | 63126934750 | $5.50 | +core | Shop at ECS Tuning | |||
| 03 | Cover strip, left | 1 | 03/2003 | 63126934751 | $13.00 | Shop at ECS Tuning | ||||
| 03 | Cover strip, right | 1 | 03/2003 | 63126934752 | $13.00 | Shop at ECS Tuning | ||||

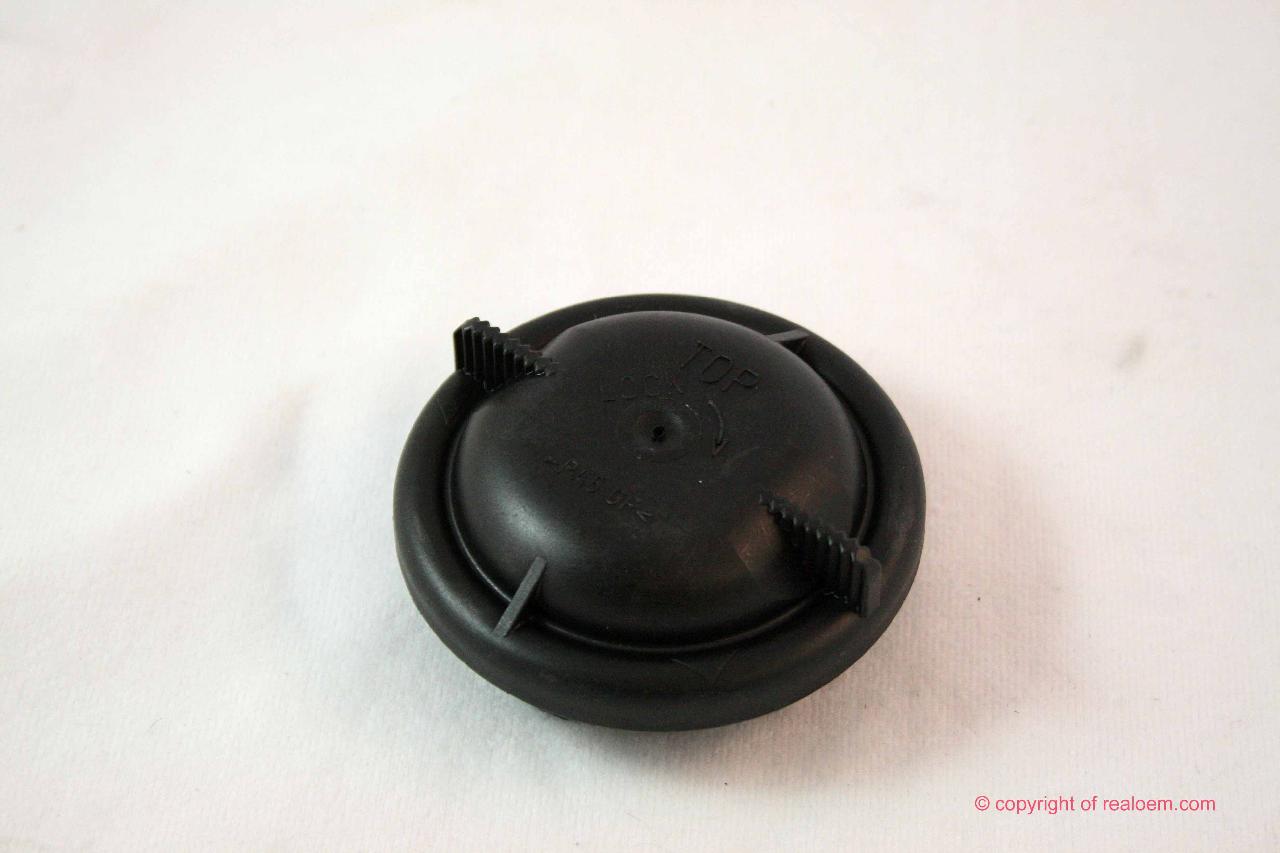

| 04 | Covering cap high beam | 1 | 03/2003 | 63126934754 | $10.03 | Shop at ECS Tuning | ||||
| 05 | Longlife bulb | 12V 55W H7 | 4 | 03/2003 | 63217160781 | $20.90 | Shop at ECS Tuning | |||
| 06 | Bulb socket, parking light | 2 | 03/2003 | 63128380205 | $6.85 | Shop at ECS Tuning | ||||
| 07 | Longlife bulb | 5W | 2 | 03/2003 | 63217160797 | $1.96 | Shop at ECS Tuning | |||
| 08 | High beam cover | 1 | 03/2003 | 63126934753 | $12.70 | Shop at ECS Tuning | ||||
| 09 | Bulb socket,turn indicator,yellow | 2 | 03/2003 | 63126934757 | $15.03 | Shop at ECS Tuning | ||||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 09 | Bulb socket, turn indicator, white | 2 | 03/2003 | 63126934758 | $15.03 | Shop at ECS Tuning | ||||
| 10 | Bulb | 12V 21W | 2 | 03/2003 | 07119905328 | $25.94 | Shop at ECS Tuning | |||
| For vehicles with White direction indicator lights |
S785A=Yes |
|||||||||
| 10 | Bulb yellow | 12V 21W | 2 | 03/2003 | 07119905329 | $25.94 | Shop at ECS Tuning | |||
| 12 | Screw | 8 | 03/2003 | 63126975083 | $0.43 | Shop at ECS Tuning | ||||
| 13 | Expanding nut | BLACK | 4 | 03/2003 | 63128374670 | $0.30 | Shop at ECS Tuning | |||
| 13 | Expanding nut | GRAU | 4 | 03/2003 | 63128374671 | $0.23 | Shop at ECS Tuning | |||
| 14 | Repair kit headlight | 2 | 03/2003 | 63126947822 | $2.55 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
